TLSTNS1103SD
lmages are for reference only.TLSTNS1103SD
LS T SNAP PLUNGER CENTRAL M 4A 1
Datasheet-
43,574 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Switch DPST-NO/NC Chassis Mount
TLSTNS1103SD
| Category | Switches - Limit Switches - |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Series | TLS |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | - |
| Circuit | DPST-NO/NC |
| Switch Function | On-Mom, Off-Mom |
| Current Rating (Amps) | 4A (AC), 1A (DC) |
| Voltage Rating - AC | 240 V |
| Voltage Rating - DC | 24 V |
| Actuator Type | Round (Pin Plunger) |
| Mounting Type | Chassis Mount |
| Termination Style | Screw Terminal |
| Ingress Protection | IP65/IP67 - Dust Tight, Water Resistant, Waterproof |
| Electrical Life | - |
| Mechanical Life | 20,000,000 Cycles |
| Features | - |
| Operating Force | 918gf |
| Release Force | - |
| Operating Position | - |
| Pretravel | - |
| Differential Travel | - |
| Overtravel | - |
| Operating Temperature | -30°C ~ 80°C |
| Product Attribute |  |
 |
 |
 |

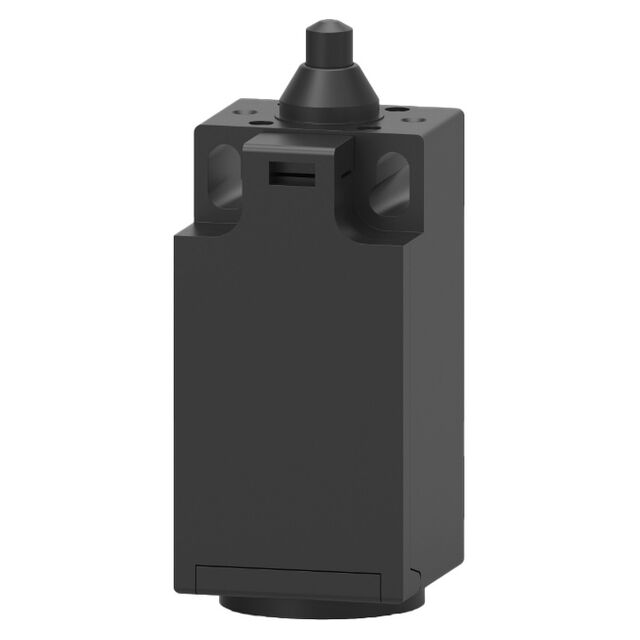

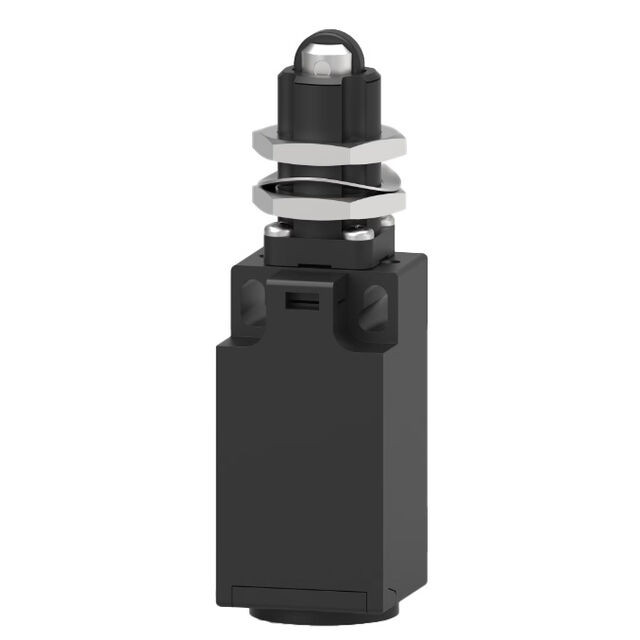

| Part Number | TLSTNS1101PD | TLSTNS1102PD | TLSTNS1104PD | TLSTNS1106PR |
| Manufacturer | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LS T SNAP PLUNGER 4A 1NO + 1NC | LS T SNAP ROLLER 4A 1NO + 1NC | LS T SNAP ROLLER CENTRAL M 4A 1N | LS T SNAP OFFSET ROLLER V2 4A 2 |
| Series | TLS | TLS | TLS | TLS |
| Packaging | Box | Box | Box | Box |
