TLSZNS1115PB
lmages are for reference only.TLSZNS1115PB
LS Z SNAP ADJ. ROD 4A 1NO + 1NC
Datasheet-
91,285 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Switch DPST-NO/NC Chassis Mount
TLSZNS1115PB
| Category | Switches - Limit Switches - |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Series | TLS |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | - |
| Circuit | DPST-NO/NC |
| Switch Function | On-Mom, Off-Mom |
| Current Rating (Amps) | 4A (AC), 1A (DC) |
| Voltage Rating - AC | 240 V |
| Voltage Rating - DC | 24 V |
| Actuator Type | Side Rotary, Adjustable Rod |
| Mounting Type | Chassis Mount |
| Termination Style | Screw Terminal |
| Ingress Protection | IP65/IP67 - Dust Tight, Water Resistant, Waterproof |
| Electrical Life | - |
| Mechanical Life | 20,000,000 Cycles |
| Features | - |
| Operating Force | 20gf |
| Release Force | - |
| Operating Position | - |
| Pretravel | - |
| Differential Travel | - |
| Overtravel | - |
| Operating Temperature | -30°C ~ 80°C |
| Product Attribute |  |
 |
 |
 |

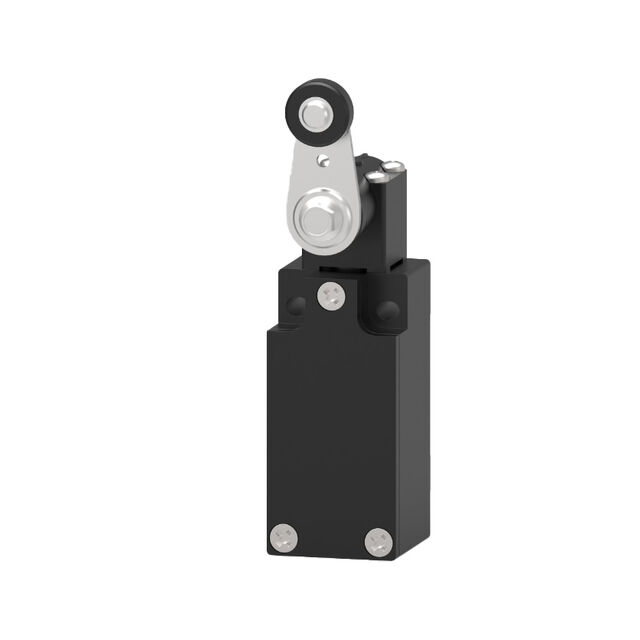

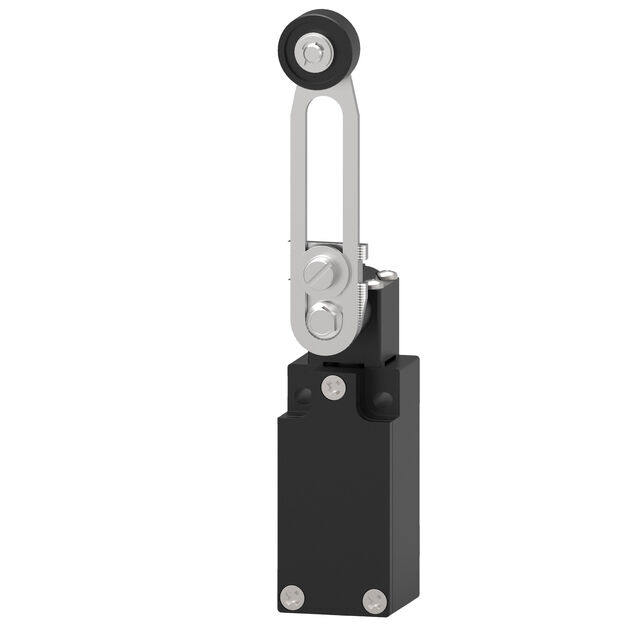

| Part Number | TLSZNS1111PB | TLSZNS1113PB | TLSZNS0201SD | TLSZNS0202PD |
| Manufacturer | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LS Z SNAP ROLLER LEVER V2 4A 1 N | LS Z SNAP ADJ.ROLLER LEVER 4A 1N | LS Z SNAP PLUNGER 4A 2 NC | LS Z SNAP ROLLER 4A 2 NC |
| Series | TLS | TLS | TLS | TLS |
| Packaging | Box | Box | Box | Box |
