TLV49611TBXALA1
lmages are for reference only.TLV49611TBXALA1
MAGNETIC SWITCH LATCH TO92
DatasheetTO-226-3, TO-92-3 (TO-226AA) Formed Leads
68,164 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Digital Switch Latch Open Drain Hall Effect TO-92
TLV49611TBXALA1
| Category | Sensors, Transducers - Magnetic Sensors - Switches Solid State |
| Manufacturer | Infineon Technologies |
| Series | - |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) |
| RoHS Status | ROHS3 Compliant |
| Function | Latch |
| Technology | Hall Effect |
| Polarization | South Pole |
| Sensing Range | 3.5mT Trip, -3.5mT Release |
| Test Condition | 25°C |
| Voltage - Supply | 3V ~ 26V |
| Current - Supply (Max) | 2.5mA |
| Current - Output (Max) | 25mA |
| Output Type | Open Drain |
| Features | Temperature Compensated |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-92 |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) Formed Leads |
| Base Product Number | TLV49611 |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Product Attribute |  |
 |
 |
 |

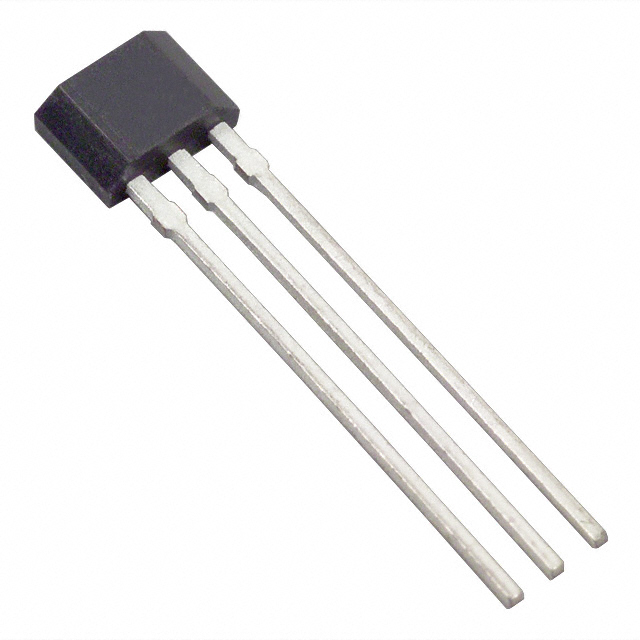

| Part Number | TLV49611TAXBXA1 | TLV4906KFTSA1 | TLV4906LHALA1 | TLV49462KFTSA1 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

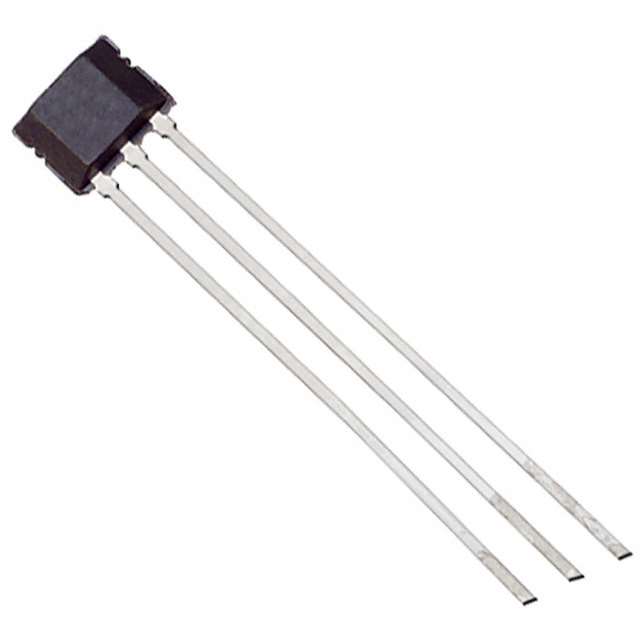

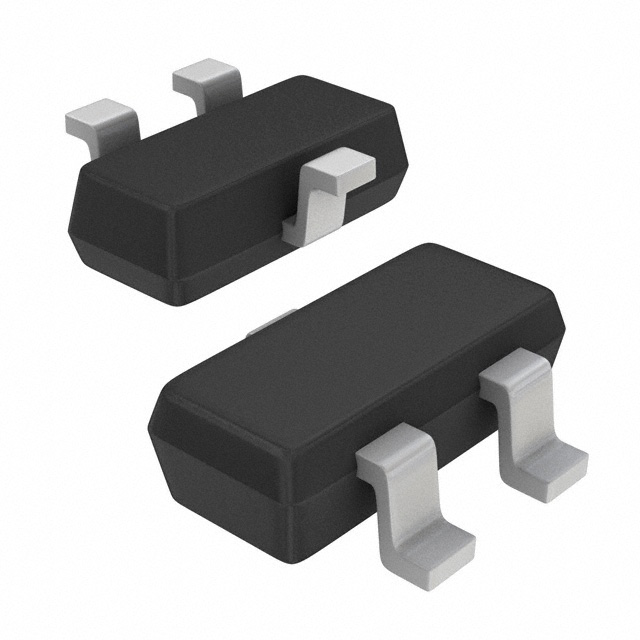

| Description | MAGNETIC SWITCH LATCH TO92-3 | MAGNETIC SWITCH UNIPOLAR SC59 | MAGNETIC SWITCH UNIPOLAR SSO-3-2 | MAGNETIC SWITCH LATCH SC59 |
| Series | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Box (TB) | Tape & Reel (TR) |
