TMP86FHDMG(KYZ)
lmages are for reference only.TMP86FHDMG(KYZ)
IC MCU 8BIT 16KB FLASH 30SSOP
Datasheet30-LSSOP (0.220", 5.60mm Width)
60,044 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
870/C TLCS-870/C Microcontroller IC 8-Bit 16MHz 16KB (16K x 8) FLASH 30-SSOP
TMP86FHDMG(KYZ)
| Category | Integrated Circuits (ICs) - Embedded - Microcontrollers |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | TLCS-870/C |
| Packaging | Tray |
| RoHS Status | |
| Core Processor | 870/C |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | I2C, SEI, UART/USART |
| Peripherals | PWM, WDT |
| Number of I/O | 24 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 6x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 30-SSOP |
| Package / Case | 30-LSSOP (0.220", 5.60mm Width) |
| Base Product Number | TMP86 |
| Grade | - |
| Qualification | - |
| Product Attribute | .jpg "TMP86FS49BFG(CZHZ)") |

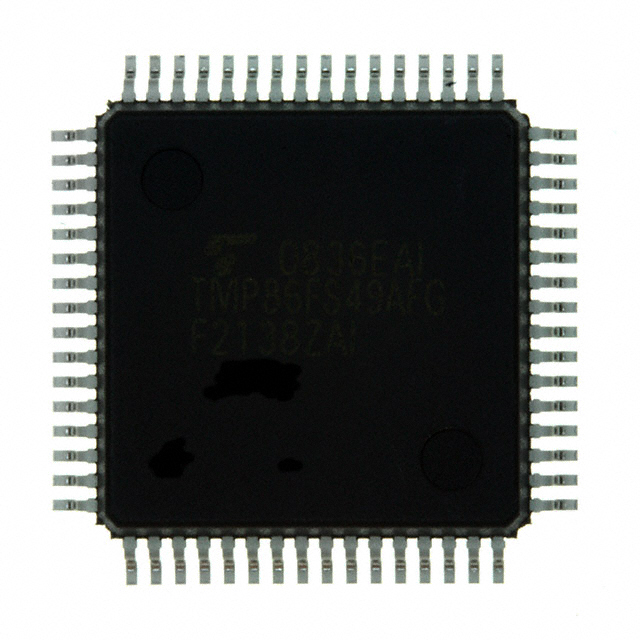

.jpg "TMP86FS49BFG(ZHZ)") |
 |
.jpg "TMP86PH06UG(C,JZ)") |
| Part Number | TMP86FS49BFG(CZHZ) | TMP86FS49BFG(ZHZ) | TMP86FS49FG | TMP86PH06UG(C,JZ) |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | |
| Description | IC MCU 8BIT 60KB FLASH 64QFP | IC MCU 8BIT 60KB FLASH 64QFP | IC MCU 8BIT 60KB FLASH 64QFP | IC MCU 8BIT 16KB OTP 44LQFP |
| Series | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| Packaging | Tray | Tray | Tray | Tray |
