TMPC 0604H-R15MG-R6705-D
lmages are for reference only.TMPC 0604H-R15MG-R6705-D
150 NH SHIELDED MOLDED INDUCTOR
DatasheetNonstandard
58,719 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
150 nH Unshielded Molded Inductor 30 A 1.2mOhm Max Nonstandard
TMPC 0604H-R15MG-R6705-D
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. |
| Series | TMPC0604H |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Molded |
| Material - Core | Carbonyl Powder |
| Inductance | 150 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 30 A |
| Current - Saturation (Isat) | 55A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.2mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.287" L x 0.260" W (7.30mm x 6.60mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

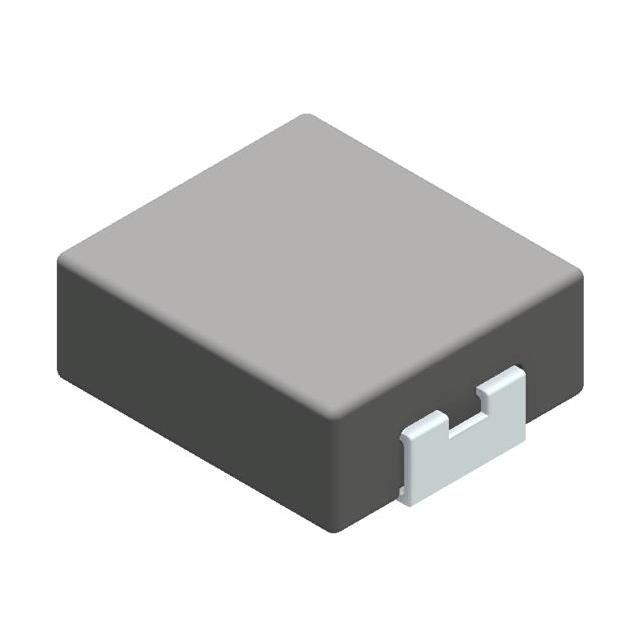

| Part Number | TMPC 0604H-100MG-D | TMPC 0604H-R22MG-M98-D | TMPA 0603S-1R0MN-D | TMPA 0603S-220MN-D |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 10 UH SHIELDED MOLDED INDUCTOR S | 220 NH SHIELDED MOLDED INDUCTOR | 1.0 UH SHIELDED MOLDED INDUCTOR | 22 UH SHIELDED MOLDED INDUCTOR S |
| Series | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
