TMPF 0703AV-3R3MN-ABD
lmages are for reference only.TMPF 0703AV-3R3MN-ABD
3.3 UH SHIELDED MOLDED INDUCTOR
DatasheetNonstandard
38,597 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3.3 µH Unshielded Inductor 10 A 18mOhm Max Nonstandard
TMPF 0703AV-3R3MN-ABD
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. |
| Series | TMPF0703AV-ABD |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | - |
| Material - Core | - |
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 10 A |
| Current - Saturation (Isat) | 15A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 18mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.307" L x 0.299" W (7.80mm x 7.60mm) |
| Height - Seated (Max) | 0.122" (3.10mm) |
| Base Product Number | - |
| Product Attribute | |
 |
 |
 |

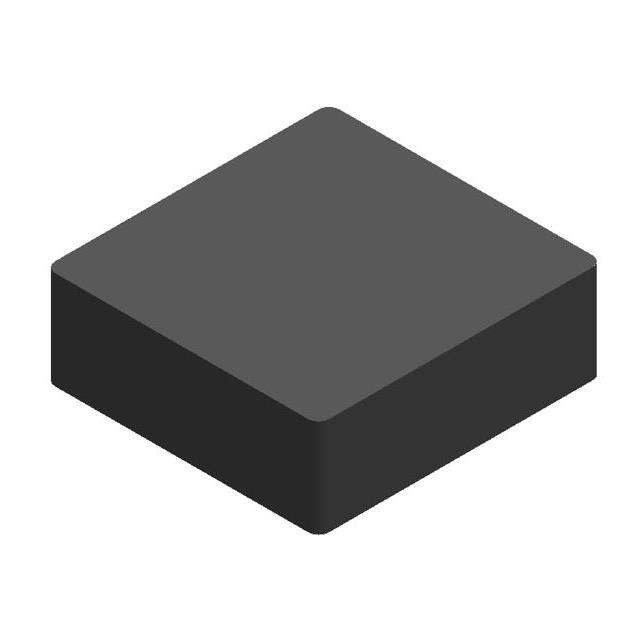

| Part Number | TMPF 0703AV-3R3MN-ABD | TMPF 0703AV-1R0MN-ABD | TMPF 0703AV-1R5MN-ABD | TMPF 0703AV-2R2MN-ABD |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 3.3 UH SHIELDED MOLDED INDUCTOR | 1.0 UH SHIELDED MOLDED INDUCTOR | 1.5 UH SHIELDED MOLDED INDUCTOR | 2.2 UH SHIELDED MOLDED INDUCTOR |
| Series | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
