TMPG06-11-E3/54
lmages are for reference only.TMPG06-11-E3/54
TVS DIODE 8.92VWM 16.2VC MPG06
DatasheetMPG06, Axial
12,664 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
16.2V Clamp 24.7A Ipp Tvs Diode Through Hole MPG06
TMPG06-11-E3/54
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | PAR® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 8.92V |
| Voltage - Breakdown (Min) | 9.9V |
| Voltage - Clamping (Max) @ Ipp | 16.2V |
| Current - Peak Pulse (10/1000µs) | 24.7A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 185°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | MPG06, Axial |
| Supplier Device Package | MPG06 |
| Base Product Number | TMPG06 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

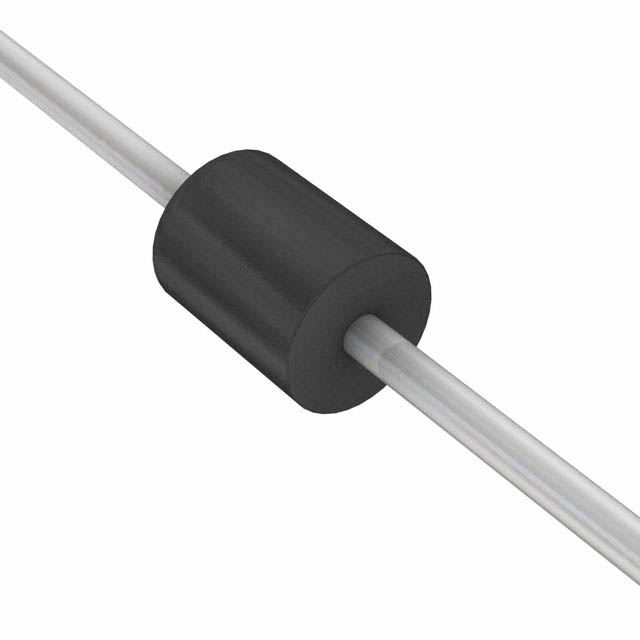

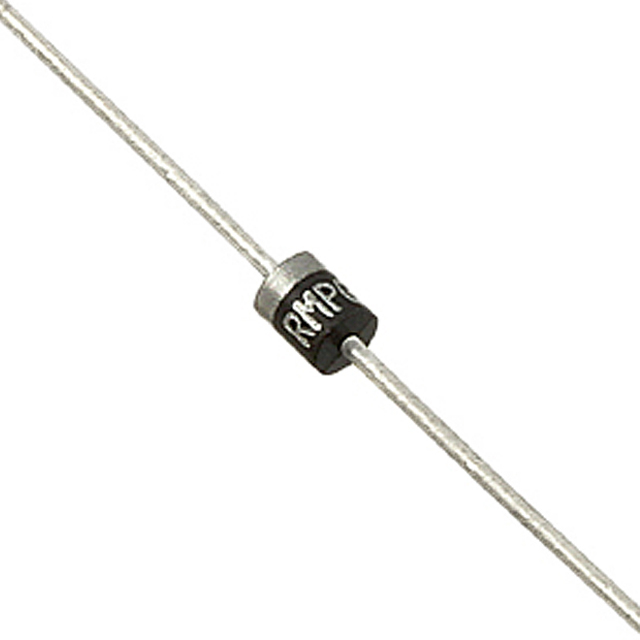

| Part Number | TMPG06-11-E3/73 | TMPG06-11A-E3/54 | TMPG06-11A-E3/73 | TMPG06-11AHE3/53 |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 8.92VWM 16.2VC MPG06 | TVS DIODE 9.4VWM 15.6VC MPG06 | TVS DIODE 9.4VWM 15.6VC MPG06 | TVS DIODE 9.4VWM 15.6VC MPG06 |
| Series | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| Packaging | Tape & Box (TB) | Tape & Reel (TR) | Tape & Box (TB) | Tape & Box (TB) |
