TNPU0603681RAZEN00
lmages are for reference only.TNPU0603681RAZEN00
RES SMD 681 OHM 0.05% 1/10W 0603
Datasheet0603 (1608 Metric)
40,424 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
681 Ohms ±0.05% 0.1W, 1/10W Chip Resistor 0603 (1608 Metric) Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant Thin Film
TNPU0603681RAZEN00
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Vishay Dale |
| Series | TNPU e3 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Resistance | 681 Ohms |
| Tolerance | ±0.05% |
| Power (Watts) | 0.1W, 1/10W |
| Composition | Thin Film |
| Features | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant |
| Temperature Coefficient | ±5ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.063" L x 0.033" W (1.60mm x 0.85mm) |
| Height - Seated (Max) | 0.022" (0.55mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

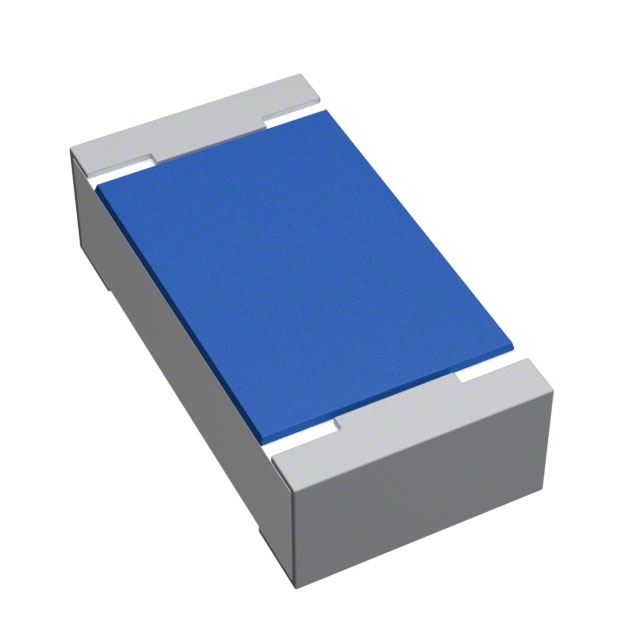

| Part Number | TNPU0603681RBZEN00 | TNPU0603100KAYEA00 | TNPU0603100KAYEN00 | TNPU0603100KAZEN00 |
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES SMD 681 OHM 0.1% 1/10W 0603 | TNPU0603 100K 0.05% T-13 ET1 E3 | TNPU0603 100K 0.05% T-13 E52 E3 | RES SMD 100KOHM 0.05% 1/10W 0603 |
| Series | Vishay Dale | Vishay Dale | ||
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
