Product CatalogPart Number
TNPW02011K00BEED
Manufacturer
Vishay DaleDescription
RES 1K OHM 0.1% 0.075W 0201
Datasheet
DatasheetPackage
0201 (0603 Metric)
In Stock
88,562 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
TNPW02011K00BEED
TNPW02011K00BEED

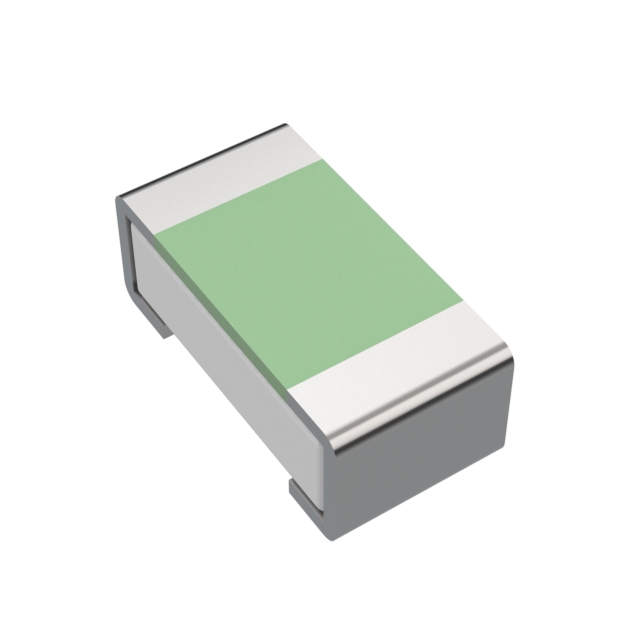

lmages are for reference only.Payment Methods
Delivery Services
1 kOhms ±0.1% 0.075W Chip Resistor 0201 (0603 Metric) Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant Thin Film
Quick Inquiry
TNPW02011K00BEED
Specifications
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Vishay Dale |
| Series | TNPW e3 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Resistance | 1 kOhms |
| Tolerance | ±0.1% |
| Power (Watts) | 0.075W |
| Composition | Thin Film |
| Features | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant |
| Temperature Coefficient | ±25ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 0201 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max) | 0.010" (0.26mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | TNPW0201 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | TNPW02011K10BEED | TNPW02011K20BEED | TNPW02011K29BEED | TNPW02011K30BEED |
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES 1.1K OHM 0.1% 0.075W 0201 | RES 1.2K OHM 0.1% 0.075W 0201 | RES 1.29K OHM 0.1% 0.075W 0201 | RES 1.3K OHM 0.1% 0.075W 0201 |
| Series | Vishay Dale | Vishay Dale | Vishay Dale | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
