TPC116S8-TR
lmages are for reference only.Payment Methods
Delivery Services
12, 16 Bit Digital to Analog Converter 1 16-TSSOP
TPC116S8-TR
| Category | Integrated Circuits (ICs) - Data Acquisition - Digital to Analog Converters DAC |
| Manufacturer | 3PEAK |
| Series | TPC116S8 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Number of Bits | 12, 16 |
| Number of D/A Converters | 1 |
| Settling Time | 14µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | Microwire, QSPI, Serial, SPI |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±8, ±0.5 |
| Architecture | String DAC |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Mounting Type | Surface Mount |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |

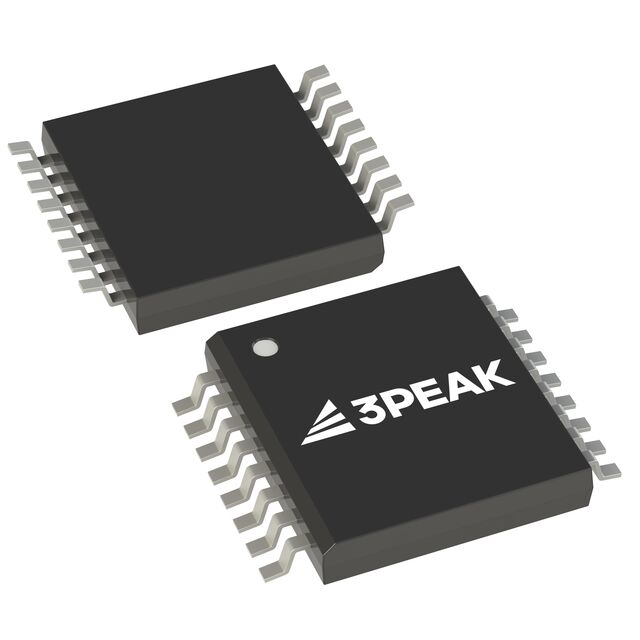

| Part Number | TPC116S8-TR | TPC112S1-VR | TPC112S1-VR | TPC112S4-TR |
| Manufacturer | 3PEAK | 3PEAK | 3PEAK | 3PEAK |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 16 BIT DIGITAL TO ANALOG CONVERT | 12 BIT DIGITAL TO ANALOG CONVERT | 12 BIT DIGITAL TO ANALOG CONVERT | 12 BIT DIGITAL TO ANALOG CONVERT |
| Series | TPC116S8 | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
