TPC2161S1L1-SO2R
lmages are for reference only.Payment Methods
Delivery Services
16 Bit Digital to Analog Converter 1 14-SOP
TPC2161S1L1-SO2R
| Category | Integrated Circuits (ICs) - Data Acquisition - Digital to Analog Converters DAC |
| Manufacturer | 3PEAK |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Number of Bits | 16 |
| Number of D/A Converters | 1 |
| Settling Time | 1µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | SPI |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 105°C |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOP |
| Mounting Type | Surface Mount |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |

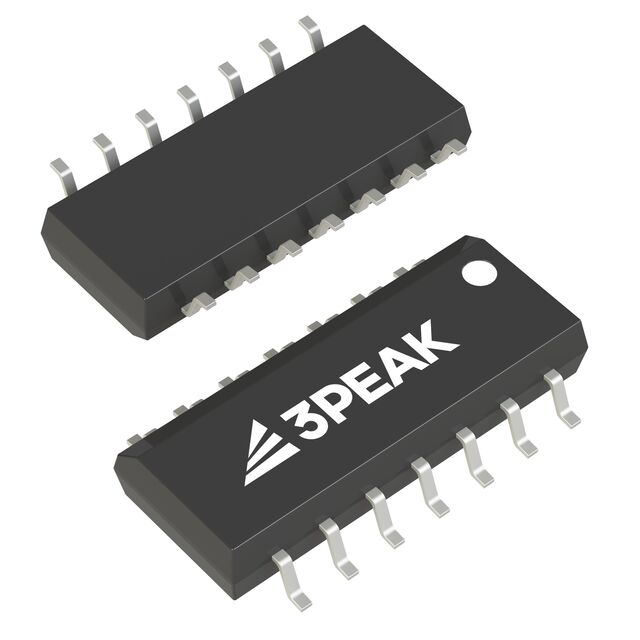

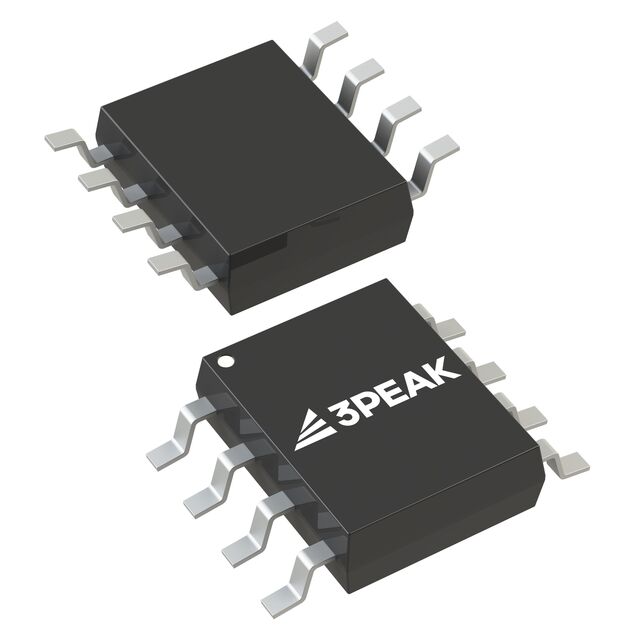

| Part Number | TPC2161S1L1-SO2R | TPC2160S1L1A-SO1R-S | TPC2160S1L1A-SO1R-S | TPC2161MS1L1-SO2R |
| Manufacturer | 3PEAK | 3PEAK | 3PEAK | 3PEAK |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 16 BIT 1 CHANNEL DIGITAL TO ANAL | 16 BIT DIGITAL TO ANALOG CONVERT | 16 BIT DIGITAL TO ANALOG CONVERT | IC DAC 16BIT 1 CH SPI DFN-8 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
