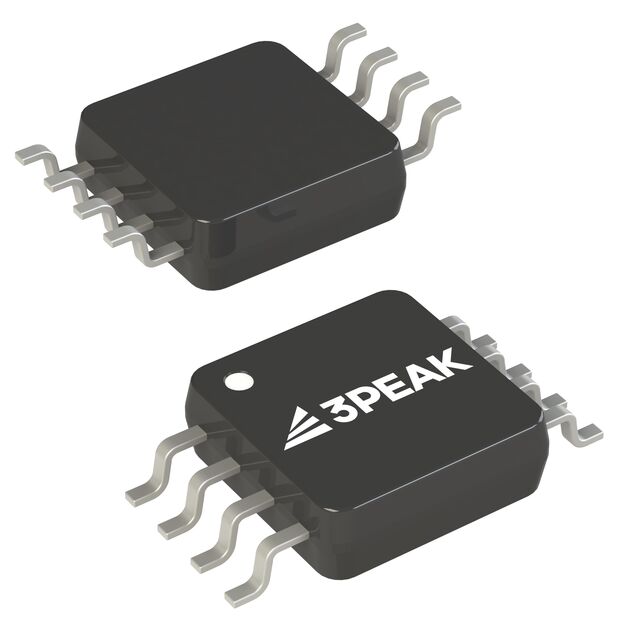

TPH2502-VR-S
lmages are for reference only.Payment Methods
Delivery Services
Standard Amplifier 2 Circuit Single Ended, Rail-to-Rail 8-MSOP
TPH2502-VR-S
| Category | Integrated Circuits (ICs) - Linear - Amplifiers |
| Manufacturer | 3PEAK |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Amplifier Type | Standard |
| Number of Circuits | 2 |
| Output Type | Single Ended, Rail-to-Rail |
| Slew Rate | 200V/µs |
| Gain Bandwidth Product | 120 MHz |
| Current - Input Bias | 3 pA |
| Voltage - Input Offset | 3 mV |
| Current - Supply | 6.5mA (x2 Channels) |
| Voltage - Supply Span (Min) | 2.5 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
| Base Product Number | - |
| Current - Output / Channel | 290 mA |
| -3db Bandwidth | 90 MHz |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | TPH2502-VR | TPH2501-TR | TPH2502-SR | TPH2503-TR |
| Manufacturer | 3PEAK | 3PEAK | 3PEAK | 3PEAK |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

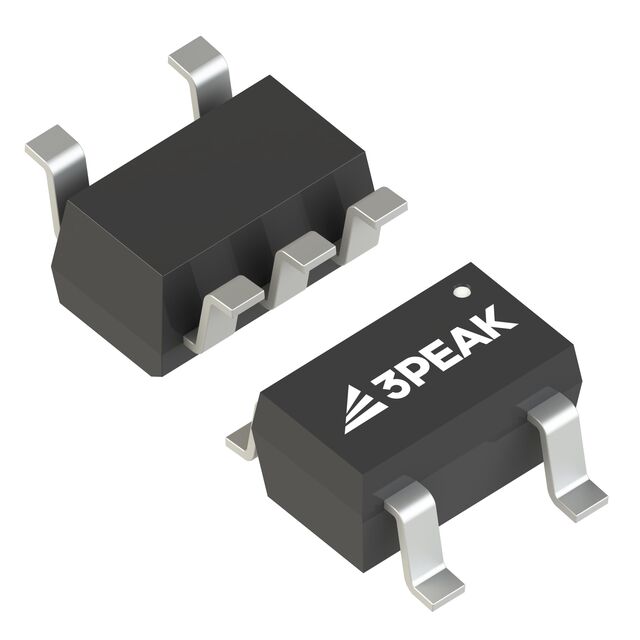

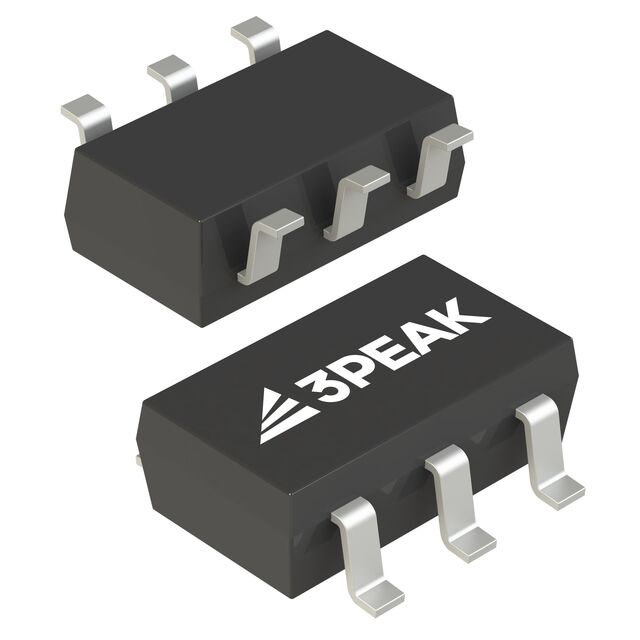

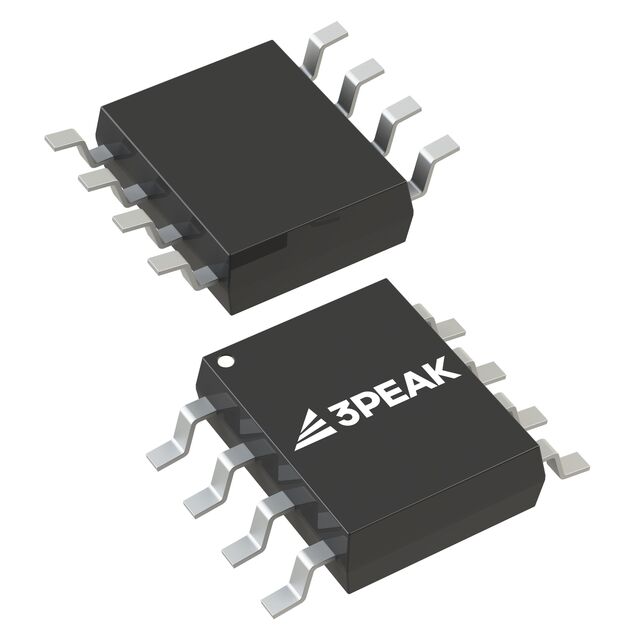

| Description | IC OPAMP 2 CIRCUIT 8-MSOP | IC OPAMP 1 CIRCUIT SOT-23-5 | IC OPAMP 2 CIRCUIT 8-SOP | IC OPAMP 1 CIRCUIT SOT-23-6 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
