TPHR6503PL,L1Q
lmages are for reference only.TPHR6503PL,L1Q
MOSFET N-CH 30V 150A 8SOP
Datasheet8-PowerVDFN
64,088 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 30 V 150A (Tc) 960mW (Ta), 170W (Tc) Surface Mount 8-SOP Advance (5x5)
TPHR6503PL,L1Q
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | U-MOSIX-H |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 150A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 0.65mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 2.1V @ 1mA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 10000 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 960mW (Ta), 170W (Tc) |
| Operating Temperature | 175°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOP Advance (5x5) |
| Package / Case | 8-PowerVDFN |
| Base Product Number | TPHR6503 |
| Gate Charge (Qg) (Max) @ Vgs | 110 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

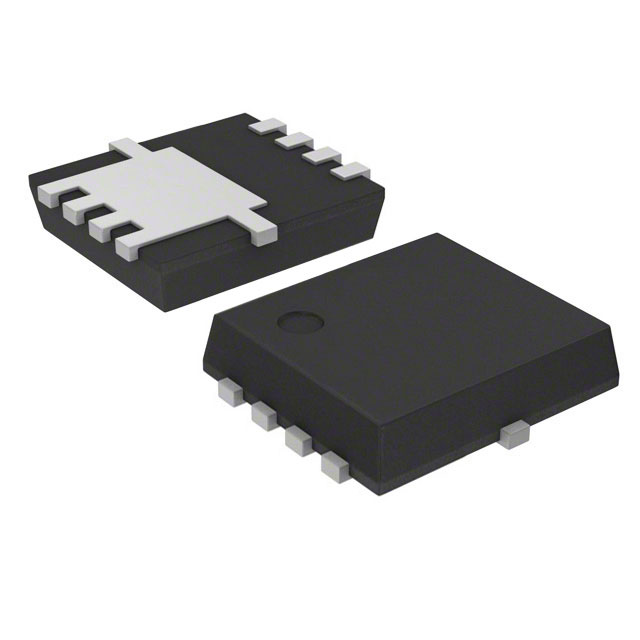

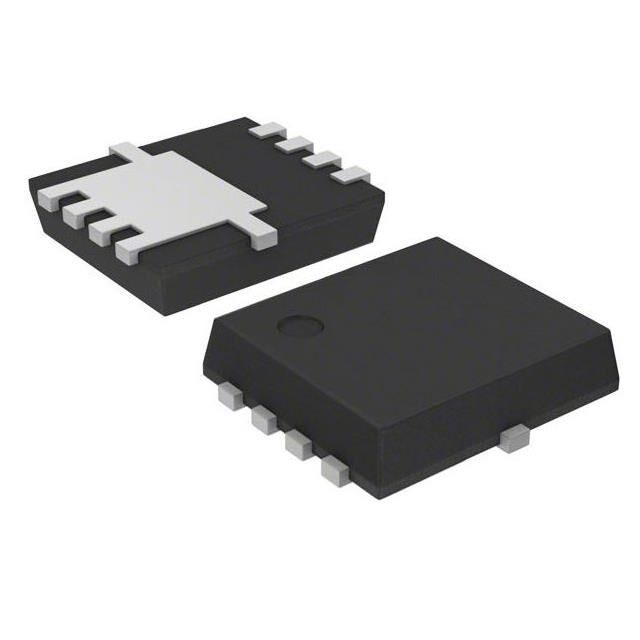

| Part Number | TPHR6503PL1,LQ | TPHR7404PU,L1Q(M | TPHR7904PB,L1XHQ | TPHR8504PL,L1Q |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ||
| Description | UMOS9 SOP-ADV(N) PD=210W F=1MHZ | 40V UMOS9 S 0.65MOHM SOP-ADV(N) | MOSFET N-CH 40V 150A 8SOP | MOSFET N-CH 40V 150A 8SOP |
| Series | U-MOSIX-H | U-MOSIX-H | U-MOSIX-H | U-MOSIX-H |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
