TPS-80
lmages are for reference only.TPS-80
TELPOWER FUSE
DatasheetCartridge, Non-Standard
76,068 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
80A 170 VDC Fuse Cartridge Requires Holder
TPS-80
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Eaton - Bussmann Electrical Division |
| Series | Telpower® TPS |
| Packaging | Bulk |
| RoHS Status | |
| Mounting Type | Requires Holder |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 80A |
| Voltage Rating - AC | - |
| Response Time | - |
| Applications | Electrical, Industrial |
| Features | - |
| Class | - |
| Approval Agency | CE, UL |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 100kA |
| Package / Case | Cartridge, Non-Standard |
| Size / Dimension | 0.551" Dia x 0.866" L (14.00mm x 22.00mm) |
| Base Product Number | - |
| Voltage Rating - DC | 170 VDC |
| Grade | - |
| Qualification | - |
| Melting I²t | - |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
|
 |

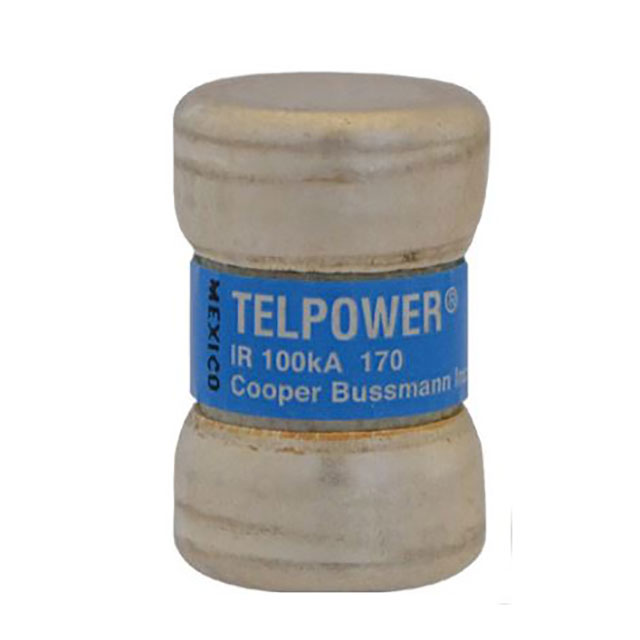

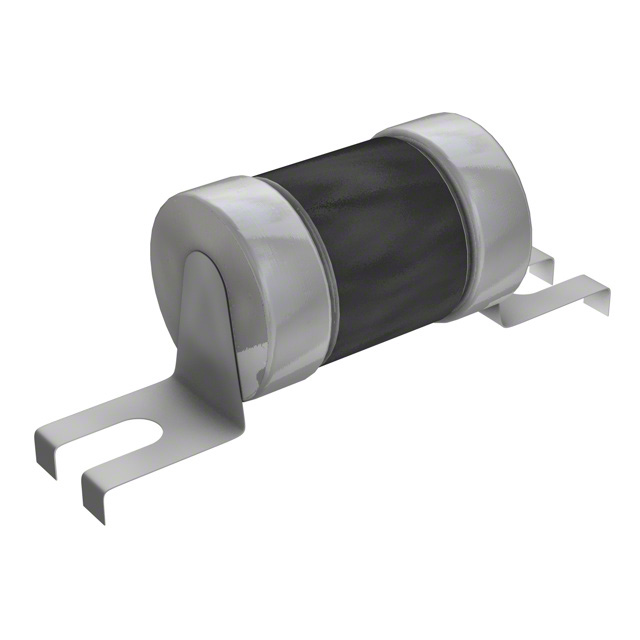

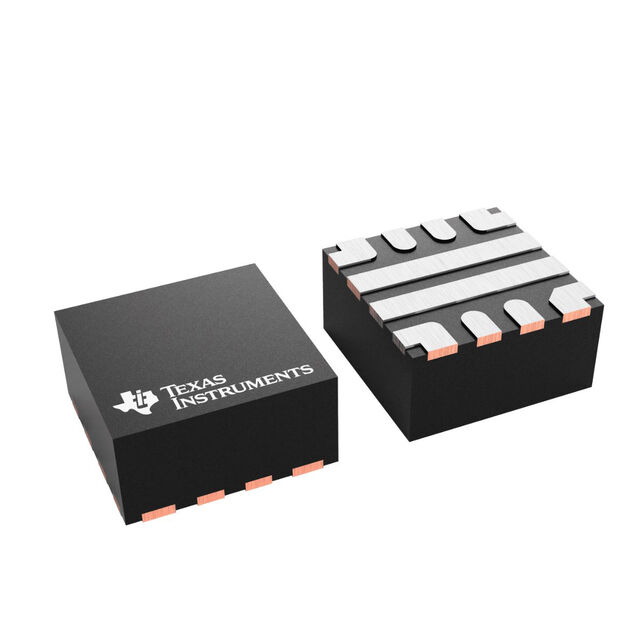

| Part Number | TPS-80V | TPS259813ARPWR | TPS-30LB | TPS-15L |
| Manufacturer | Eaton - Bussmann Electrical Division | Texas Instruments | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ||
| Description | TPS 80 W/END TERMINALS | 2.7-V TO 16-V, 10-A, 6-M EFUSE W | TELPOWER FUSE | FUSE CRTRDGE 15A 170VDC CYLINDR |
| Series | Telpower® TPS | - | * | Telpower® TPS |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Bulk |
