TPS53511RGTT
lmages are for reference only.TPS53511RGTT
IC REG BUCK ADJ 1.5A 16VQFN
Datasheet16-VFQFN Exposed Pad
54,388 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Buck Switching Regulator IC Positive Adjustable 0.76V 1 Output 1.5A 16-VFQFN Exposed Pad
TPS53511RGTT
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators DC DC Switching Regulators |
| Manufacturer | Texas Instruments |
| Series | D-CAP2™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2V |
| Voltage - Input (Max) | 18V |
| Voltage - Output (Min/Fixed) | 0.76V |
| Voltage - Output (Max) | 5V |
| Current - Output | 1.5A |
| Frequency - Switching | 700kHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-VQFN (3x3) |
| Base Product Number | TPS53511 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

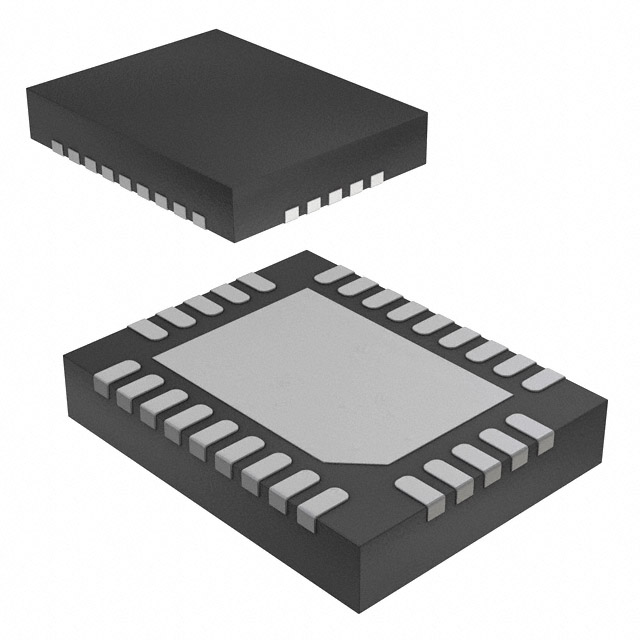

| Part Number | TPS53511RGTR | TPS53513RVER | TPS53513RVET | TPS53515RVER |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG BUCK ADJ 1.5A 16VQFN | IC REG BUCK ADJ 8A 28VQFN | IC REG BUCK ADJ 8A 28VQFN | IC REG BUCK ADJ 12A 28VQFN |
| Series | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
