TPS65631WDSKR
lmages are for reference only.TPS65631WDSKR
IC REG AMOLED DISPL 2OUT 10SON
Datasheet10-WFDFN Exposed Pad
21,647 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
- Converter, AMOLED Display Voltage Regulator IC 2 Output 10-SON (2.5x2.5)
TPS65631WDSKR
| Category | Integrated Circuits (ICs) - Power Management PMIC - Special Purpose Regulators |
| Manufacturer | Texas Instruments |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Applications | Converter, AMOLED Display |
| Voltage - Input | 2.9V ~ 4.5V |
| Number of Outputs | 2 |
| Voltage - Output | 4.6V, -1.4V ~ -4.4V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-SON (2.5x2.5) |
| Base Product Number | TPS65631 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

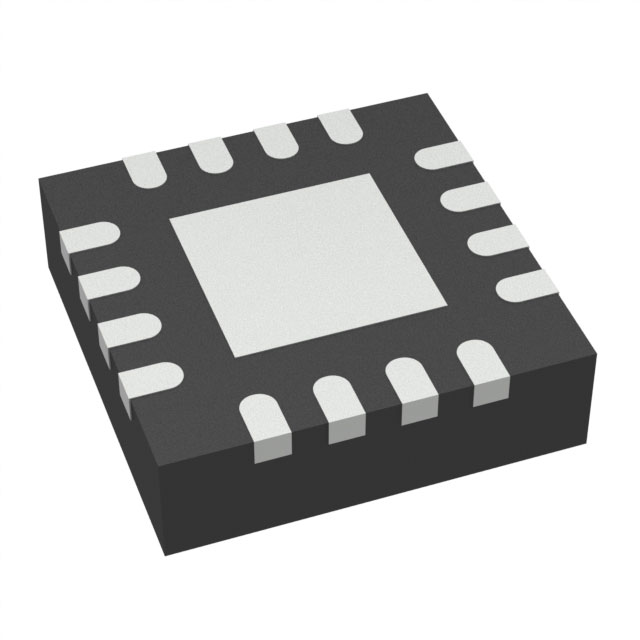

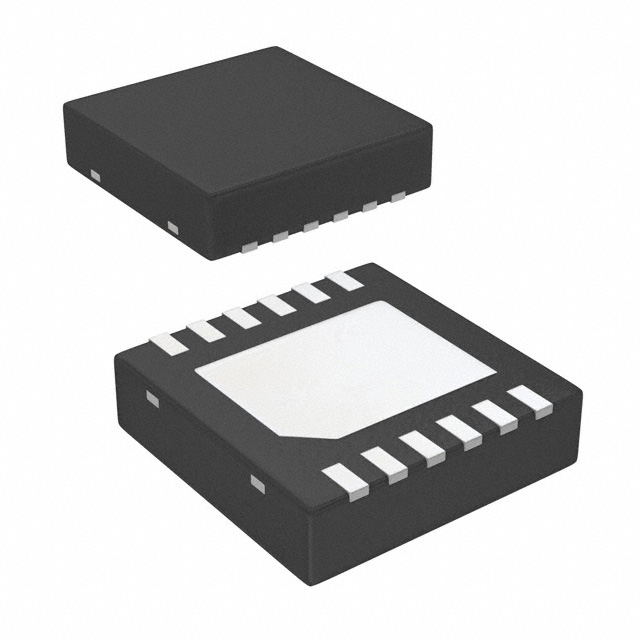

| Part Number | TPS65631DPDR | TPS65632AGRTER | TPS65632ARTER | TPS65632RTER |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG AMOLED DISPL 2OUT 12WSON | IC REG AMOLED DISPL 3OUT 16WQFN | IC REG AMOLED DISPL 3OUT 16WQFN | IC REG AMOLED DISPL 3OUT 16WQFN |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
