TPS71219DRCR

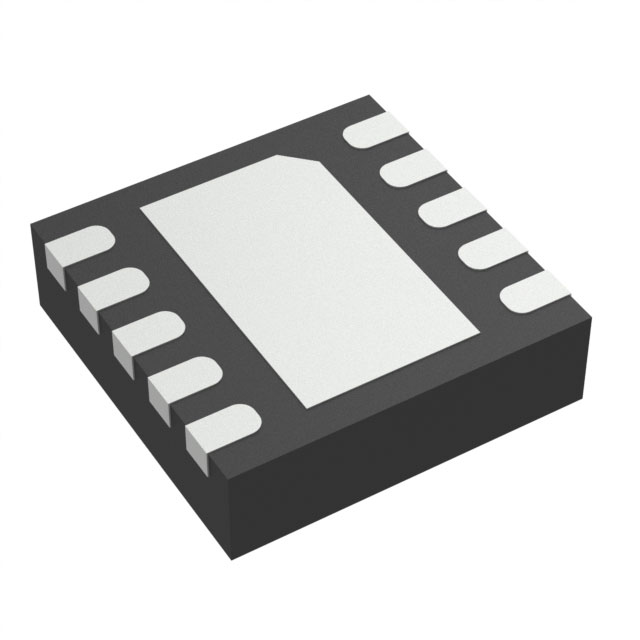

lmages are for reference only.TPS71219DRCR
IC REG LIN POS ADJ 250MA 10VSON
Datasheet10-VFDFN Exposed Pad
12,874 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Adjustable (Fixed) 2 Output 250mA 10-VSON (3x3)
TPS71219DRCR
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Texas Instruments |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Adjustable (Fixed) |
| Number of Regulators | 2 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.2V (1.8V) |
| Voltage - Output (Max) | 5.5V |
| Voltage Dropout (Max) | 0.4V @ 500mA |
| Current - Output | 250mA |
| Current - Quiescent (Iq) | 250 µA |
| PSRR | 59dB ~ 54dB (120Hz) |
| Control Features | Enable, Power Good |
| Protection Features | Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-VSON (3x3) |
| Base Product Number | TPS71219 |
| Current - Supply (Max) | 600 µA |
| Product Attribute |  |
 |
 |
 |
| Part Number | TPS71219DRCRG4 | TPS71219DRCT | TPS71202DRCR | TPS71202DRCRG4 |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LIN POS ADJ 250MA 10VSON | IC REG LIN POS ADJ 250MA 10VSON | IC REG LIN POS ADJ 250MA 10VSON | IC REG LIN POS ADJ 250MA 10VSON |
| Series | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
