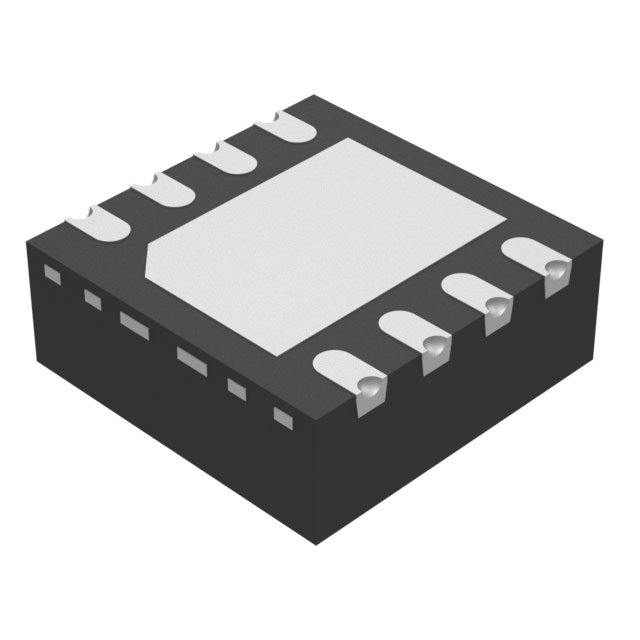

TPS745115PQWDRBRQ1
lmages are for reference only.TPS745115PQWDRBRQ1
AUTOMOTIVE 500-MA, LOW-IQ, HIGH-
Datasheet8-VDFN Exposed Pad
92,575 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA 8-SON (3x3)
TPS745115PQWDRBRQ1
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Texas Instruments |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | Not applicable |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1.15V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.6V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 36 µA |
| PSRR | 57dB ~ 35dB (1kHz ~ 1MHz) |
| Control Features | Enable, Power Good |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 8-VDFN Exposed Pad |
| Supplier Device Package | 8-SON (3x3) |
| Base Product Number | TPS745115 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |

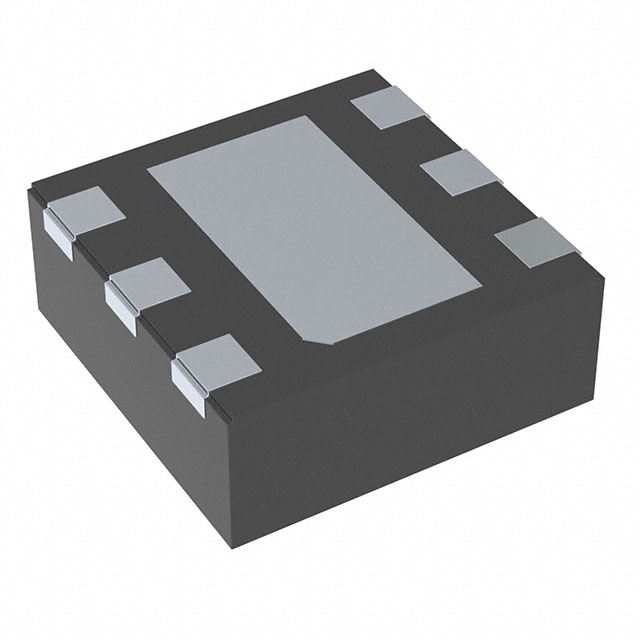

| Part Number | TPS74511PQWDRBRQ1 | TPS74511PQWDRVRQ1 | TPS1117LV10S | TPS1117LV12S |
| Manufacturer | Texas Instruments | Texas Instruments | TAEJIN | TAEJIN |
| RoHS Status | Not applicable | ROHS3 Compliant | RoHS Compliant | RoHS Compliant |
| Description | AUTOMOTIVE 500-MA, LOW-IQ, HIGH- | IC REG LINEAR 1.1V 500MA 6WSON | IC REG LINEAR 1V 1A SOT223-3 | IC REG LINEAR 1.2V 1A SOT223-3 |
| Series | Texas Instruments | Texas Instruments | TAEJIN | TAEJIN |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
