TPSMA6L30A-AQ

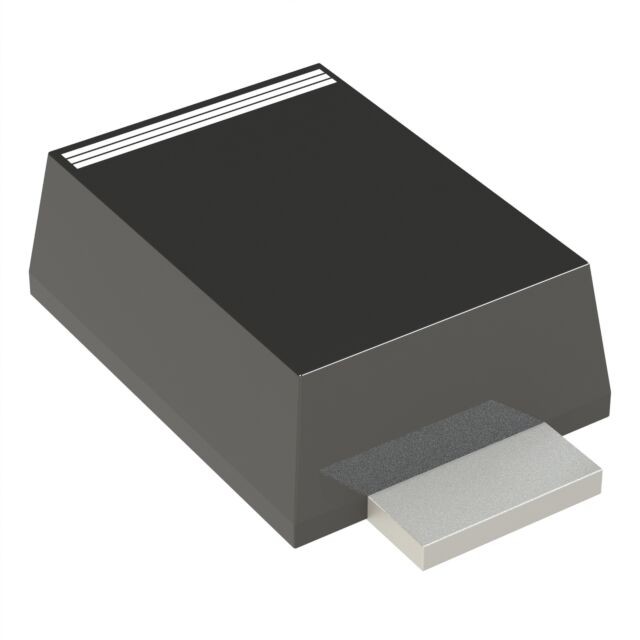

lmages are for reference only.TPSMA6L30A-AQ
TVS DIODE 30VWM 48.4VC SMAF
DatasheetDO-221AC, SMA Flat Leads
98,445 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
48.4V Clamp 12.4A Ipp Tvs Diode Surface Mount SMAF
TPSMA6L30A-AQ
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Diotec Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 30V |
| Voltage - Breakdown (Min) | 33.3V |
| Voltage - Clamping (Max) @ Ipp | 48.4V |
| Current - Peak Pulse (10/1000µs) | 12.4A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-221AC, SMA Flat Leads |
| Supplier Device Package | SMAF |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
|
|
 |
| Part Number | TPSMA6L30A | TPSMA6L30A | TPSMA6L10A | TPSMA6L11A |
| Manufacturer | Littelfuse Inc. | Diotec Semiconductor | Littelfuse Inc. | Diotec Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | TVS SMAF 30V 600W UNIDIR | TVS DIODE 30VWM 48.4VC SMAF | TVS DIODE 10VWM 17VC DO221AC | TVS DIODE 11VWM 18.2VC SMAF |
| Series | Littelfuse Inc. | Diotec Semiconductor | Littelfuse Inc. | Diotec Semiconductor |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
