TPSMB7.5AHM3_A/H

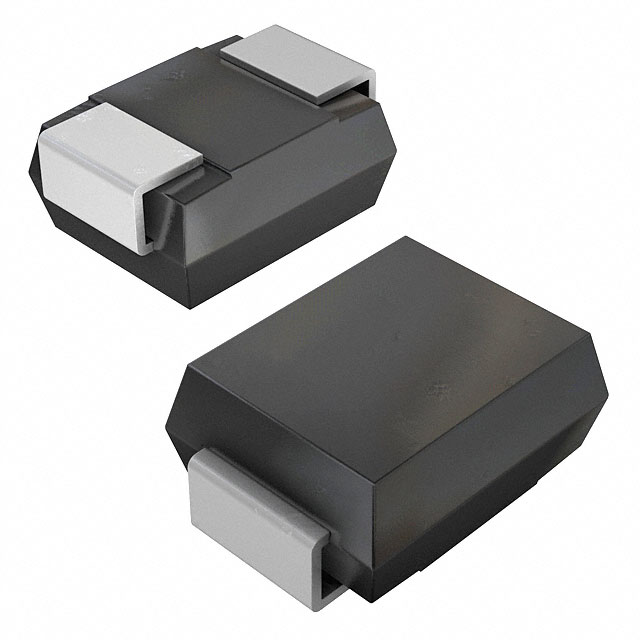

lmages are for reference only.TPSMB7.5AHM3_A/H
TVS DIODE 6.4VWM 11.3VC DO214AA
DatasheetDO-214AA, SMB
71,386 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
11.3V Clamp 53.1A Ipp Tvs Diode Surface Mount DO-214AA (SMB)
TPSMB7.5AHM3_A/H
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | PAR® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 6.4V |
| Voltage - Breakdown (Min) | 7.13V |
| Voltage - Clamping (Max) @ Ipp | 11.3V |
| Current - Peak Pulse (10/1000µs) | 53.1A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | Telecom |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 185°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | DO-214AA (SMB) |
| Base Product Number | TPSMB7.5 |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute | |
 |
 |
 |
| Part Number | TPSMB7.5AHM3_A/I | TPSMB7.5AHE3/52T | TPSMB7.5AHE3/5BT | TPSMB7.5AHE3_A/H |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 6.4VWM 11.3VC DO214AA | TVS DIODE 6.4VWM 11.3VC DO214AA | TVS DIODE 6.4VWM 11.3VC DO214AA | TVS DIODE 6.4VWM 11.3VC DO214AA |
| Series | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
