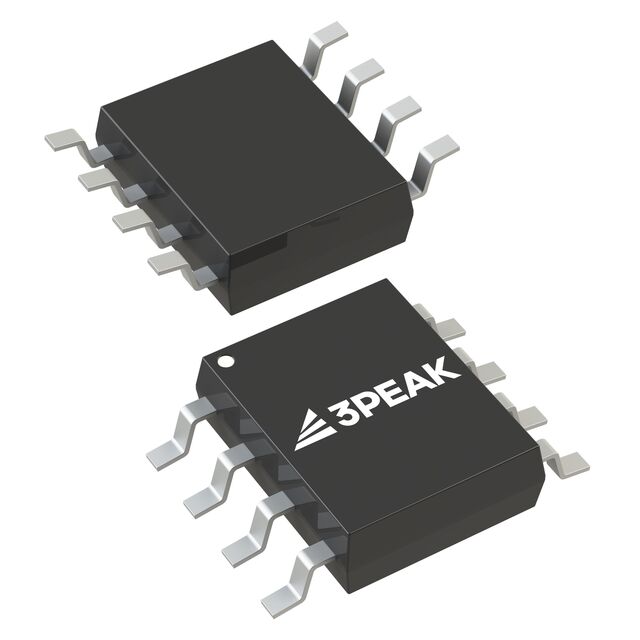

I2C Digital Isolator 3750Vrms 2 Channel 1MHz 150kV/µs CMTI 8-SOIC (0.154", 3.90mm Width)
TPT72617-SO1R
| Category | Isolators - Digital Isolators - |
| Manufacturer | 3PEAK |
| Series | TPT7261x |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | Capacitive Coupling |
| Type | I2C |
| Isolated Power | No |
| Number of Channels | 2 |
| Inputs - Side 1/Side 2 | 2/2 |
| Channel Type | Bidirectional |
| Voltage - Isolation | 3750Vrms |
| Common Mode Transient Immunity (Min) | 150kV/µs |
| Data Rate | 1MHz |
| Propagation Delay tpLH / tpHL (Max) | 70ns, 110ns |
| Pulse Width Distortion (Max) | 40ns |
| Rise / Fall Time (Typ) | -, 18ns |
| Voltage - Supply | 3V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOP |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | TPT72616-SO1R | TPT7720-SO1R | TPT7720-SOAR | TPT7720-SOBR |
| Manufacturer | 3PEAK | 3PEAK | 3PEAK | 3PEAK |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | BIDIRECTIONAL I2C ISOLATOR 8-SOP | GENERAL PURPOSE DIGITAL ISOLATOR | GENERAL PURPOSE DIGITAL ISOLATOR | GENERAL PURPOSE DIGITAL ISOLATOR |
| Series | TPT7261x | TPT772x | TPT772x | TPT772x |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
