TR1-6/10R
lmages are for reference only.TR1-6/10R
250V 1 6/10A 2X9/10 RK5 T
DatasheetCartridge, Non-Standard
36,291 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.6A 250 VAC 250 VDC Fuse Cartridge Requires Holder
TR1-6/10R
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. |
| Series | TR-R |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Requires Holder |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 1.6A |
| Voltage Rating - AC | 250 VAC |
| Response Time | Slow Blow |
| Applications | Electrical, Industrial |
| Features | Indicating |
| Class | RK5 |
| Approval Agency | CSA, UL |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 200kA AC, 20kA DC |
| Package / Case | Cartridge, Non-Standard |
| Size / Dimension | 0.551" Dia x 2.008" L (14.00mm x 51.00mm) |
| Base Product Number | - |
| Voltage Rating - DC | 250 VDC |
| Grade | - |
| Qualification | - |
| Melting I²t | - |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |

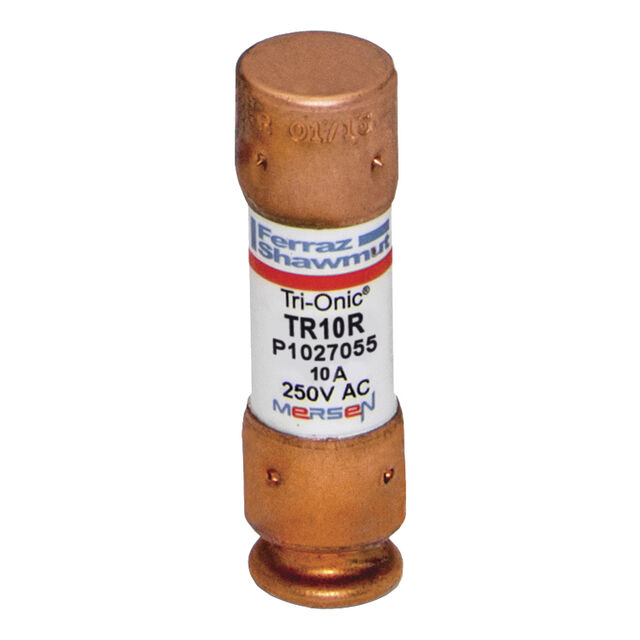

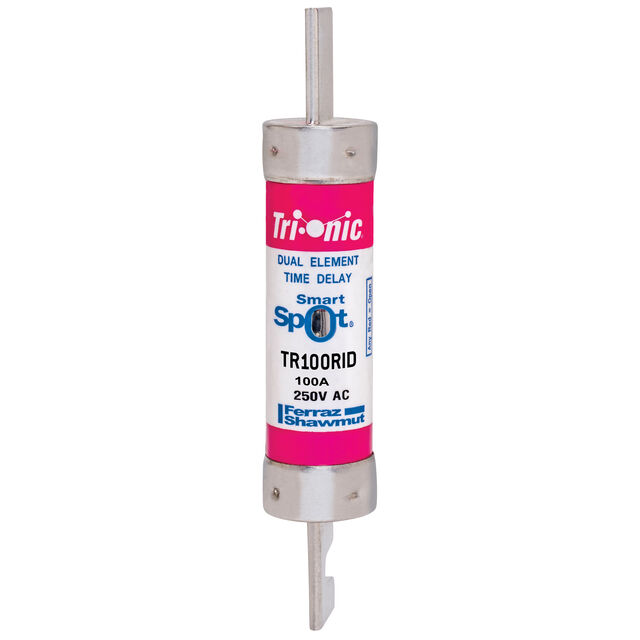

| Part Number | TR1/2R | TR100R | TR100RID | TR10R |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FUSE,TIME DELAY,CLASS RK5,REJECT | 250V 100A 5 7/8X1 1/16 RK | 250V 100A TD RK5 FUSE SMARTSPO | 250V 10A 2X9/16 RK5 TD FU |
| Series | TR-R | TR-R | TR-R | TR-R |
| Packaging | Box | Box | Box | Box |
