TR3R
lmages are for reference only.TR3R
250V 3A 2X9/10 RK5 TD FUS
DatasheetCartridge, Non-Standard
34,733 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3A 250 VAC 160 VDC Fuse Cartridge Requires Holder
TR3R
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. |
| Series | TR-R |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Requires Holder |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 3A |
| Voltage Rating - AC | 250 VAC |
| Response Time | Slow Blow |
| Applications | Electrical, Industrial |
| Features | Indicating |
| Class | RK5 |
| Approval Agency | CSA, UL |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 200kA AC, 20kA DC |
| Package / Case | Cartridge, Non-Standard |
| Size / Dimension | 0.551" Dia x 2.008" L (14.00mm x 51.00mm) |
| Base Product Number | - |
| Voltage Rating - DC | 160 VDC |
| Grade | - |
| Qualification | - |
| Melting I²t | - |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |

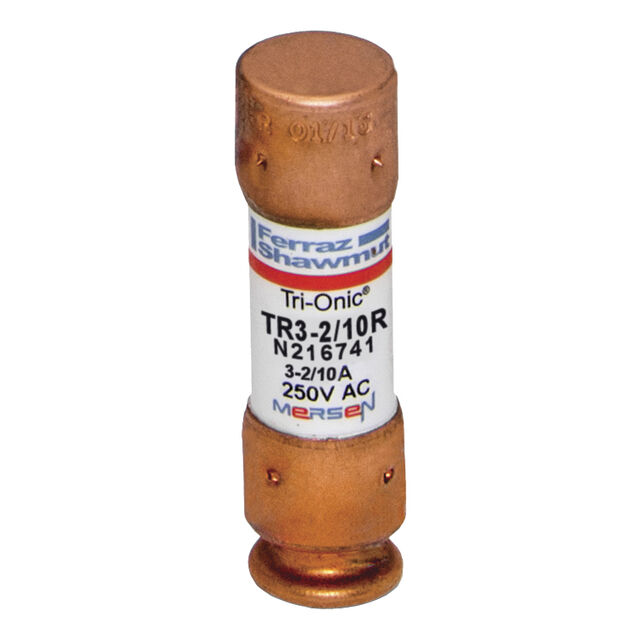

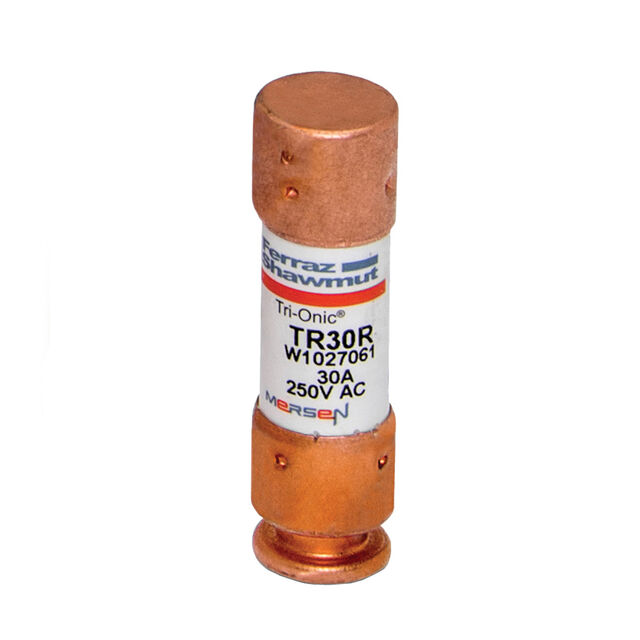

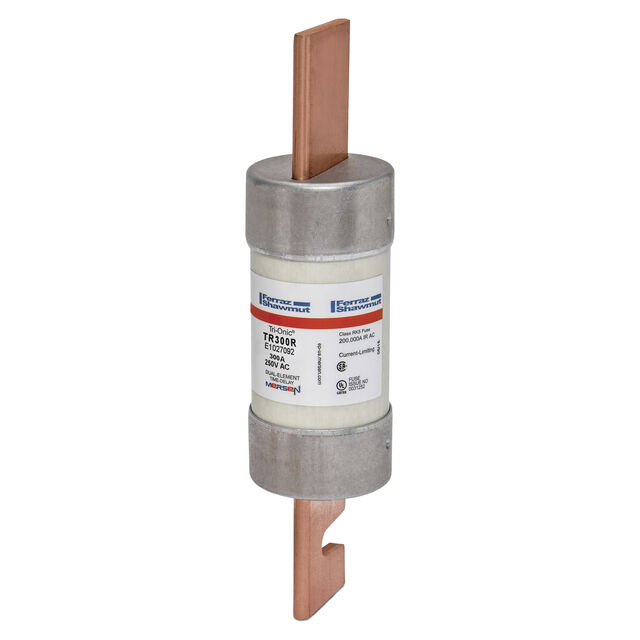

| Part Number | TR3-2/10R | TR300R | TR30R | TR30RID |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 250V 3 2/10A 2X9/10 RK5 T | 250V 300A 8 5/8X2 1/10 TD | 250V 30A 2X9/16 RK5 TD FU | 250V 30A TD RK5 FUSE SMARTSPOT |
| Series | TR-R | TR-R | TR-R | TR-R |
| Packaging | Box | Box | Box | Box |
