TS15P07G-K

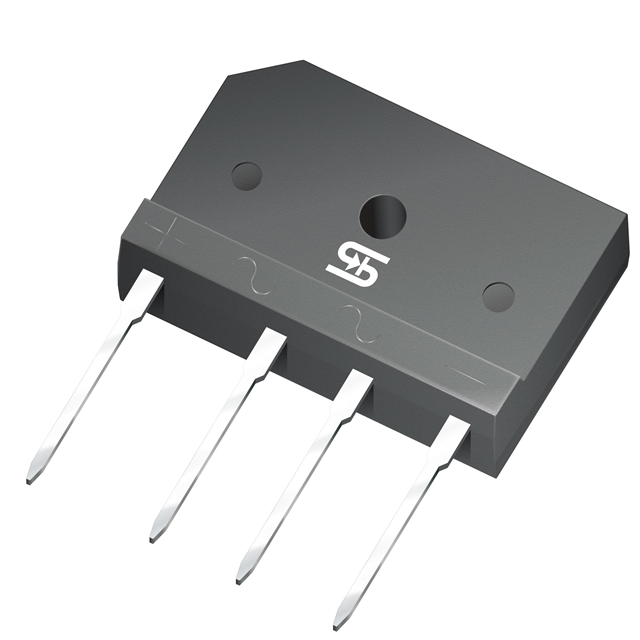

lmages are for reference only.TS15P07G-K
15A, 1000V, STANDARD BRIDGE RECT
Datasheet4-SIP, TS-6P
61,457 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bridge Rectifier Single Phase Standard 1 kV Through Hole TS-6P
TS15P07G-K
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | - |
| Packaging | Tube |
| RoHS Status | |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 1 kV |
| Current - Average Rectified (Io) | 15 A |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 7.5 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 1000 V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP, TS-6P |
| Supplier Device Package | TS-6P |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | TS15P07G-K C2G | TS15P07G-K D2G | TS15P07G | TS15P07G C2G |
| Manufacturer | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | BRIDGE RECT 1PHASE 1KV 15A TS-6P | BRIDGE RECT 1PHASE 1KV 15A TS-6P | BRIDGE RECT 1PHASE 1KV 15A TS-6P | BRIDGE RECT 1PHASE 1KV 15A TS-6P |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
