TSH251CX RFG

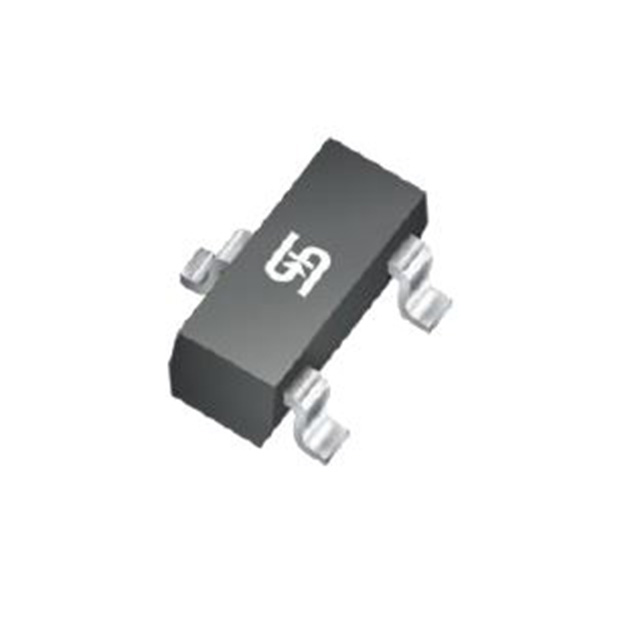

lmages are for reference only.TSH251CX RFG
MAGNETIC SWITCH TSOT23-3
DatasheetTO-236-3, SC-59, SOT-23-3
44,784 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Digital Switch Omnipolar Switch CMOS Hall Effect SOT-23
TSH251CX RFG
| Category | Sensors, Transducers - Magnetic Sensors - Switches Solid State |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Function | Omnipolar Switch |
| Technology | Hall Effect |
| Polarization | Either |
| Sensing Range | ±5.5mT Trip, ±1mT Release |
| Test Condition | -40°C ~ 125°C |
| Voltage - Supply | 1.65V ~ 3.5V |
| Current - Supply (Max) | 1.4mA |
| Current - Output (Max) | 1mA |
| Output Type | CMOS |
| Features | Temperature Compensated |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23 |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Base Product Number | TSH251 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

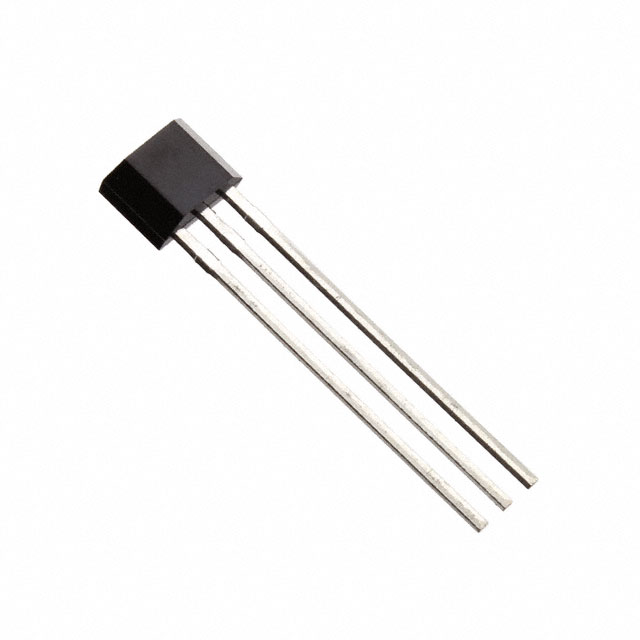

| Part Number | TSH251CT | TSH251CT B0G | TSH251CX | TSH282CT |
| Manufacturer | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MICROPOWER OMNI-POLAR HALL EFFEC | MAGNETIC SWITCH TO92S | MICROPOWER CMOS OUTPUT HALL EFFE | UNIPOLAR HALL EFFECT SWITCH |
| Series | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| Packaging | Tape & Box (TB) | Bulk | Tape & Reel (TR) | Tape & Box (TB) |
