TSM60NB041PW

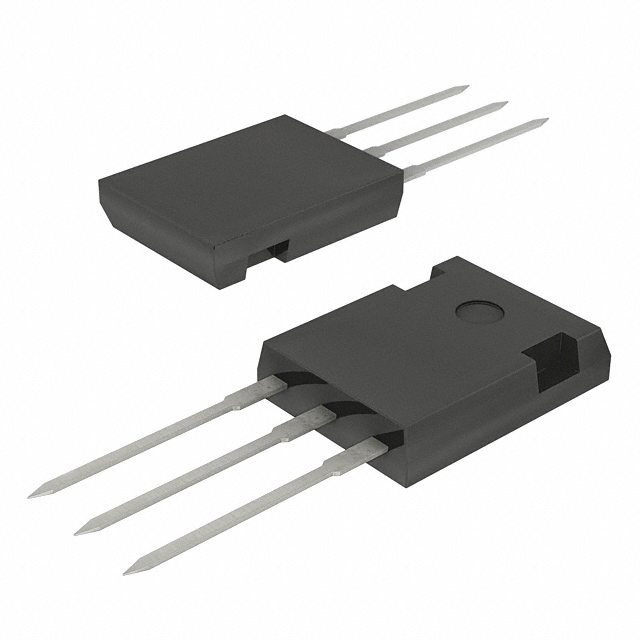

lmages are for reference only.TSM60NB041PW
600V, 78A, SINGLE N-CHANNEL POWE
DatasheetTO-247-3
32,916 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 600 V 78A (Tc) 446W (Tc) Through Hole TO-247
TSM60NB041PW
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 78A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 41mOhm @ 21.7A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 6120 pF @ 100 V |
| FET Feature | - |
| Power Dissipation (Max) | 446W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247 |
| Package / Case | TO-247-3 |
| Base Product Number | TSM60 |
| Gate Charge (Qg) (Max) @ Vgs | 139 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | TSM60NB041PW C1G | TSM60N06CP ROG | TSM60N1R4CH C5G | TSM60N1R4CP ROG |
| Manufacturer | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CHANNEL 600V 78A TO247 | MOSFET N-CHANNEL 60V 66A TO252 | MOSFET N-CH 600V 3.3A TO251 | MOSFET N-CH 600V 3.3A TO252 |
| Series | - | - | - | - |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
