TSM680P06CH
lmages are for reference only.TSM680P06CH
-60V, -18A, SINGLE P-CHANNEL POW
DatasheetTO-251-3 Stub Leads, IPAK
41,253 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
P-Channel 60 V 18A (Tc) 20W (Tc) Through Hole TO-251S (IPAK SL)
TSM680P06CH
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 18A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 68mOhm @ 6A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 870 pF @ 30 V |
| FET Feature | - |
| Power Dissipation (Max) | 20W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-251S (IPAK SL) |
| Package / Case | TO-251-3 Stub Leads, IPAK |
| Base Product Number | TSM680 |
| Gate Charge (Qg) (Max) @ Vgs | 16.4 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |
| Part Number | TSM680P06CH X0G | TSM680P06CI C0G | TSM680P06CP | TSM680P06CP ROG |
| Manufacturer | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

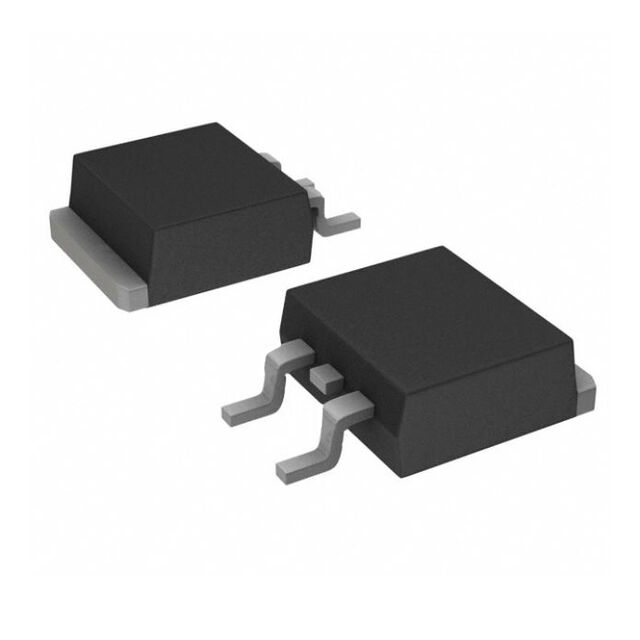

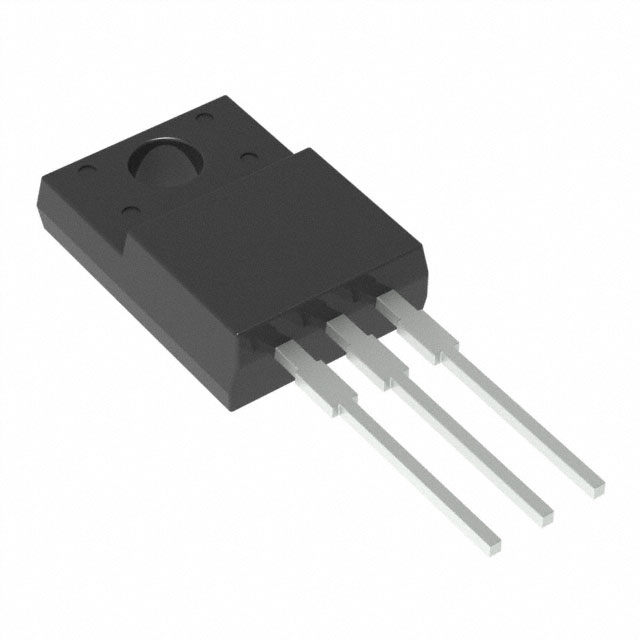

| Description | MOSFET P-CHANNEL 60V 18A TO251 | MOSFET P-CH 60V 18A ITO220 | -60V, -18A, SINGLE P-CHANNEL POW | MOSFET P-CHANNEL 60V 18A TO252 |
| Series | - | - | - | - |
| Packaging | Tube | Bulk | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
