TSML1040
lmages are for reference only.TSML1040
EMITTER IR 940NM 100MA AXIAL
DatasheetAxial
13,829 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Infrared (IR) Emitter 940nm 1.2V 100mA 3mW/sr @ 100mA 24° Axial
TSML1040
| Category | Optoelectronics - LED Emitters Infrared-UV-Visible - |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | TSML1040 |
| Type | Infrared (IR) |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 3mW/sr @ 100mA |
| Wavelength | 940nm |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Viewing Angle | 24° |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

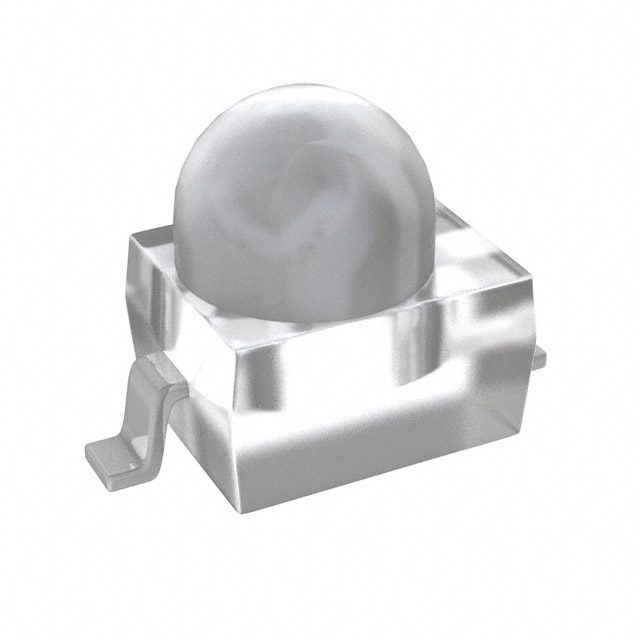

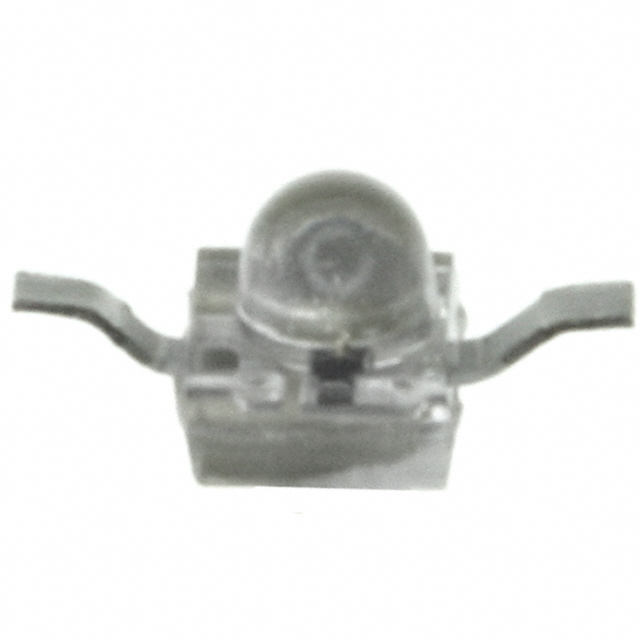

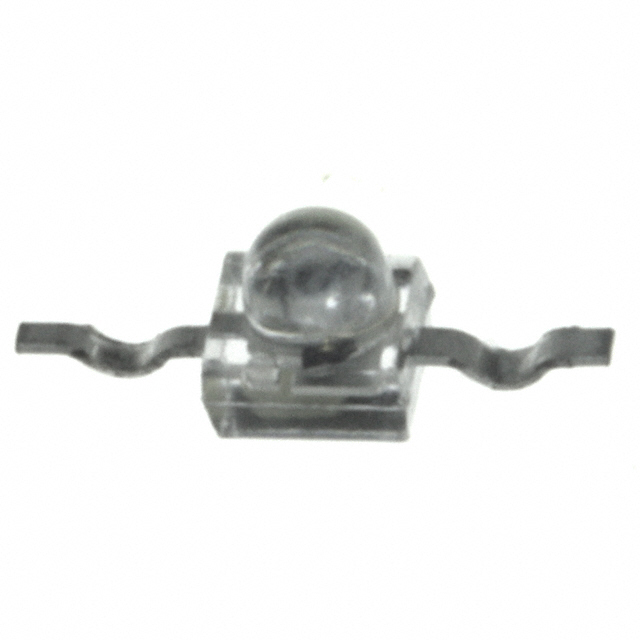

| Part Number | TSML1000 | TSML1020 | TSML1030 | TSMF1000 |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | EMITTER IR 940NM 100MA SMD | EMITTER IR 940NM 100MA SMD | EMITTER IR 940NM 100MA SMD | EMITTER IR 890NM 100MA 2SMD |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
