TTETBLJANF-10.000000
lmages are for reference only.Payment Methods
Delivery Services

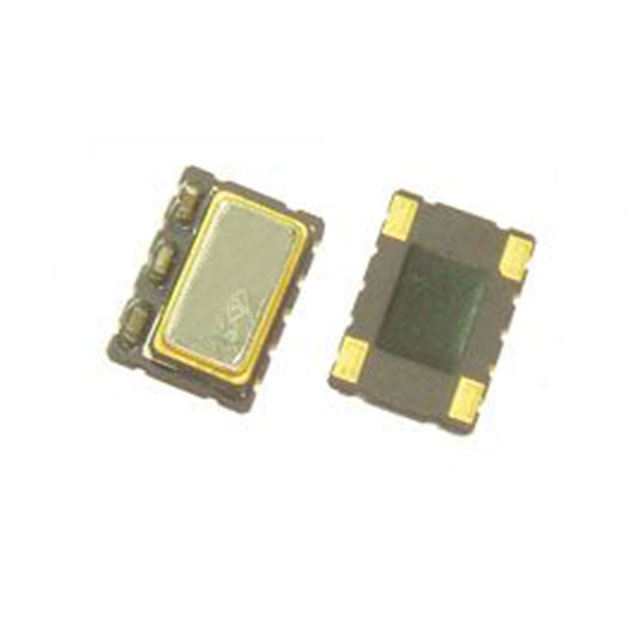

10 MHz TCXO CMOS Oscillator 3.3V 4-SMD, No Lead Exposed Pad
TTETBLJANF-10.000000
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Taitien |
| Series | TT |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | TCXO |
| Frequency | 10 MHz |
| Function | - |
| Output | CMOS |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±1ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 6mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead Exposed Pad |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height - Seated (Max) | 0.083" (2.10mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
|
| Part Number | TTETBLJANF-19.200000 | TTETBLJANF-25.000000 | TTETBLJANF-27.000000 | TTETBLJANF-30.720000 |
| Manufacturer | Taitien | Taitien | Taitien | Taitien |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | OSC TCXO 19.2MHZ 3.3V CMOS SMD | OSC TCXO 25MHZ 3.3V CMOS SMD | OSC TCXO 27MHZ 3.3V CMOS SMD | OSC TCXO 30.72MHZ 3.3V CMOS SMD |
| Series | Taitien | Taitien | Taitien | Taitien |
| Packaging | Strip | Strip | Strip | Strip |
