Product CatalogPart Number
TV04A510J-G
Manufacturer
Comchip TechnologyDescription
TVS DIODE 51VWM 82.4VC SMA
Datasheet
DatasheetPackage
DO-214AC, SMA
In Stock
92,185 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
TV04A510J-G
TV04A510J-G

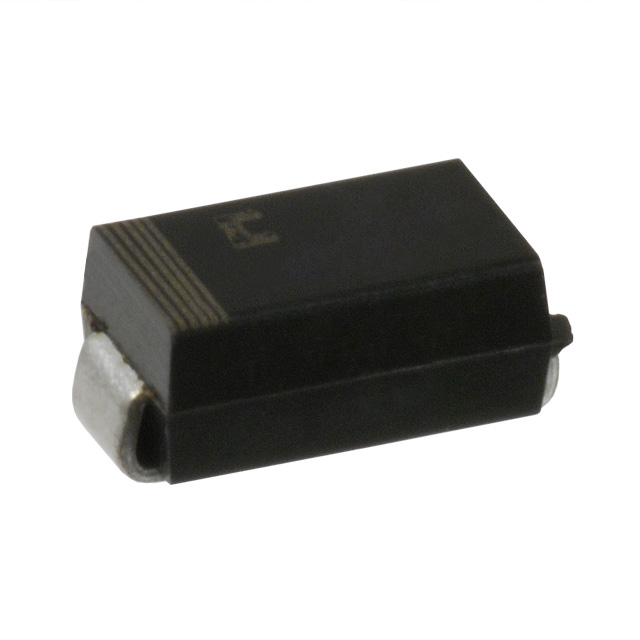

lmages are for reference only.Payment Methods
Delivery Services
82.4V Clamp 4.85A Ipp Tvs Diode Surface Mount DO-214AC (SMA)
Quick Inquiry
TV04A510J-G
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Comchip Technology |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 51V |
| Voltage - Breakdown (Min) | 56.7V |
| Voltage - Clamping (Max) @ Ipp | 82.4V |
| Current - Peak Pulse (10/1000µs) | 4.85A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) |
| Base Product Number | TV04A510 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|
| Part Number | TV04A510JB-G | TV04A510JB-HF | TV04A100J-G | TV04A100JB-G |
| Manufacturer | Comchip Technology | Comchip Technology | Comchip Technology | Comchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 51VWM 82.4VC SMA | TVS DIODE 51VWM 82.4VC SMA | TVS DIODE 10VWM 17VC SMA | TVS DIODE 10VWM 17VC SMA |
| Series | Comchip Technology | Comchip Technology | Comchip Technology | Comchip Technology |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
