Product CatalogPart Number
TVS510/TR
Manufacturer
Microchip TechnologyDescription
UNI-DIRECTIONAL TVS
Datasheet
DatasheetPackage
B, Axial
In Stock
75,013 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
TVS510/TR
TVS510/TR
lmages are for reference only.Payment Methods
Delivery Services
16.5V Clamp 30.3A Ipp Tvs Diode Through Hole B, Axial
Quick Inquiry
TVS510/TR
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Microchip Technology |
| Series | TVS |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 10V |
| Voltage - Breakdown (Min) | 11.1V |
| Voltage - Clamping (Max) @ Ipp | 16.5V |
| Current - Peak Pulse (10/1000µs) | 30.3A |
| Power - Peak Pulse | 500W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 175°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | B, Axial |
| Supplier Device Package | B, Axial |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

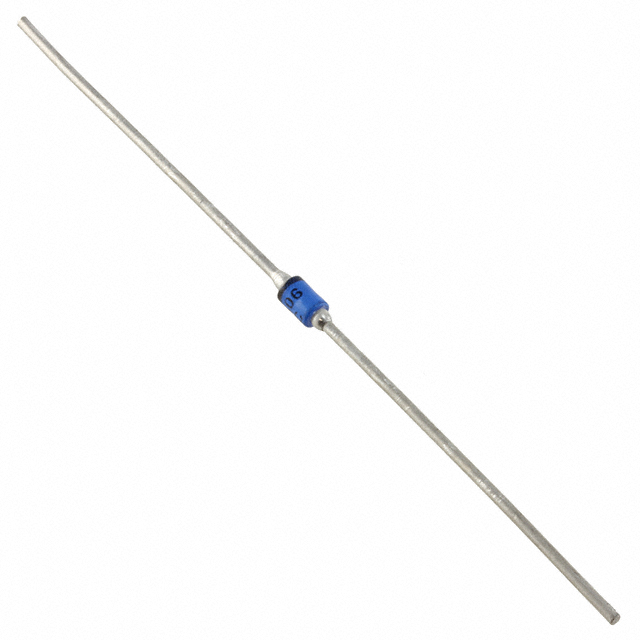

| Part Number | TVS510 | TVS510SM | TVS305 | TVS305E3 |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | TVS DIODE 10VWM 16.5VC AXIAL | TVS DIODE 10VWM 16.5VC E-MELF | TVS DIODE 5VWM 8.7VC AXIAL | TVS DIODE 5VWM 8.7VC A AXIAL |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Bulk | Bulk | Bulk | Bulk |
