TVSL02V05C005

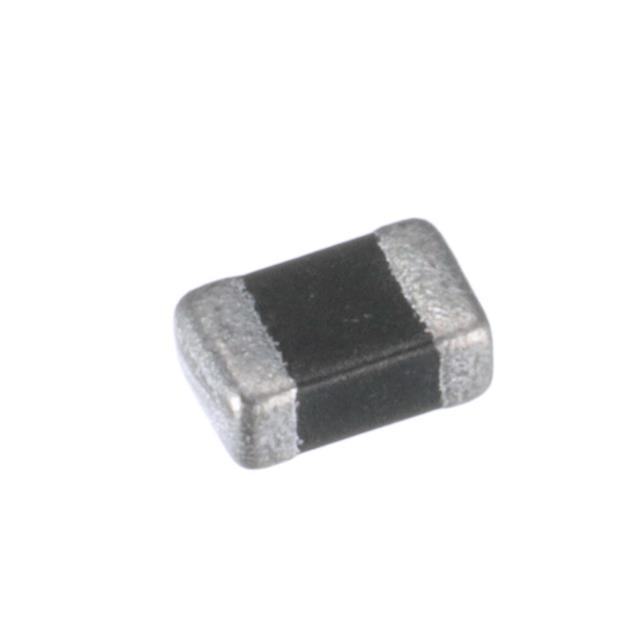

lmages are for reference only.TVSL02V05C005
TVS DIODE ESD 5V SMD 0201
Datasheet0201 (0603 Metric)
29,343 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
11.5V (Typ) Clamp 6A (8/20µs) Ipp Tvs Diode Surface Mount 0201
TVSL02V05C005
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Eaton - Electronics Division |
| Series | TVSL |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 7V |
| Voltage - Clamping (Max) @ Ipp | 11.5V (Typ) |
| Current - Peak Pulse (10/1000µs) | 6A (8/20µs) |
| Power - Peak Pulse | 46W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 5pF @ 1MHz |
| Operating Temperature | -55°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 0201 |
| Base Product Number | TVSL02 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | TVSL02V05C018 | TVSL02V03C011 | TVSL02V07C006 | TVSL02V09C005 |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE ESD 5V SMD 0201 | TVS DIODE ESD 3V SMD 0201 | TVS DIODE ESD 7V SMD 0201 | TVS DIODE ESD 9V SMD 0201 |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
