TYS252010L1R0N-10

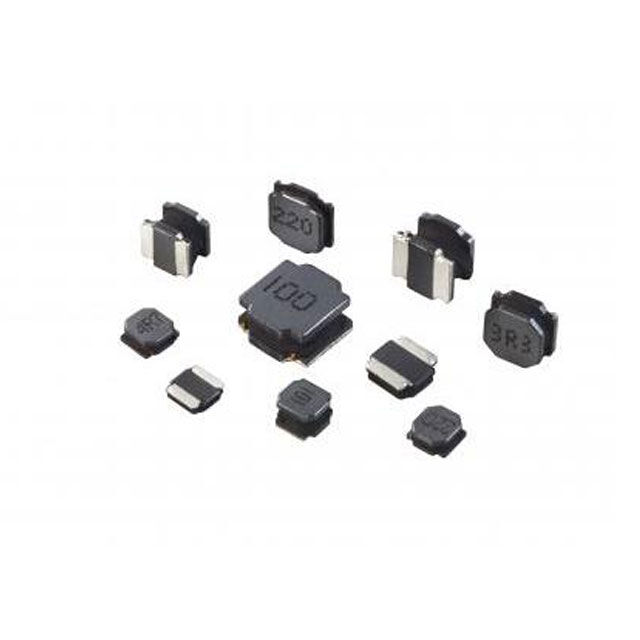

lmages are for reference only.TYS252010L1R0N-10
FIXED IND 1UH 1.65A 108 MOHM SMD
Datasheet1008 (2520 Metric)
17,334 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 µH Shielded Inductor 1.65 A 108mOhm Max 1008 (2520 Metric)
TYS252010L1R0N-10
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Laird-Signal Integrity Products |
| Series | TYS252010L |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | - |
| Material - Core | - |
| Inductance | 1 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 1.65 A |
| Current - Saturation (Isat) | 1.85A |
| Shielding | Shielded |
| DC Resistance (DCR) | 108mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 100MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 1008 (2520 Metric) |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Base Product Number | - |
| Product Attribute |  |
|
|
 |
| Part Number | TYS252010L1R5N-10 | TYS252010L2R2N-10 | TYS252010L2R2N-10 | TYS252010L3R3M-10 |
| Manufacturer | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 1.5UH 1.3A 182MOHM SMD | FIXED IND 2.2UH 1.2A 209MOHM SMD | FIXED IND 2.2UH 1.2A 209MOHM SMD | FIXED IND 3.3UH 900MA 328MOHM SM |
| Series | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
