TYS60206R8N-10
lmages are for reference only.TYS60206R8N-10
FIXED IND 6.8UH 1.8A 79 MOHM SMD
DatasheetNonstandard
42,865 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
6.8 µH Shielded Inductor 1.8 A 79mOhm Max Nonstandard
TYS60206R8N-10
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Laird-Signal Integrity Products |
| Series | TYS6020 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | - |
| Material - Core | - |
| Inductance | 6.8 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 1.8 A |
| Current - Saturation (Isat) | 2.2A |
| Shielding | Shielded |
| DC Resistance (DCR) | 79mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 31MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Height - Seated (Max) | 0.087" (2.20mm) |
| Base Product Number | - |
| Product Attribute | |
 |
 |
 |

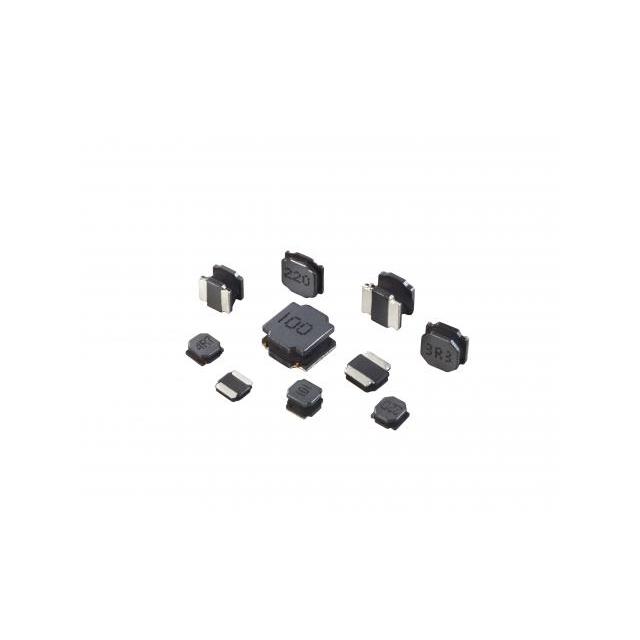

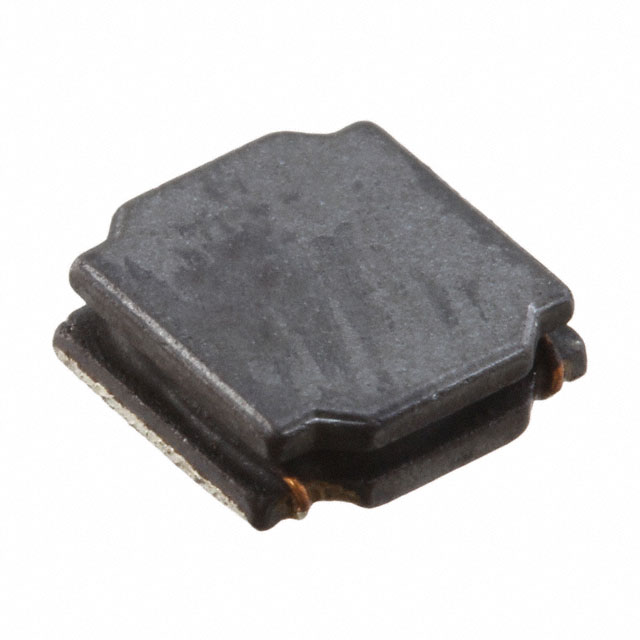

| Part Number | TYS60206R8N-10 | TYS6020100M-10 | TYS60201R5N-10 | TYS6020220M-10 |
| Manufacturer | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 6.8UH 1.8A 79 MOHM SMD | FIXED IND 10UH 1.4A 105 MOHM SMD | FIXED IND 1.5UH 3.2A 22 MOHM SMD | FIXED IND 22UH 1A 204 MOHM SMD |
| Series | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
