TZM5260B-GS18

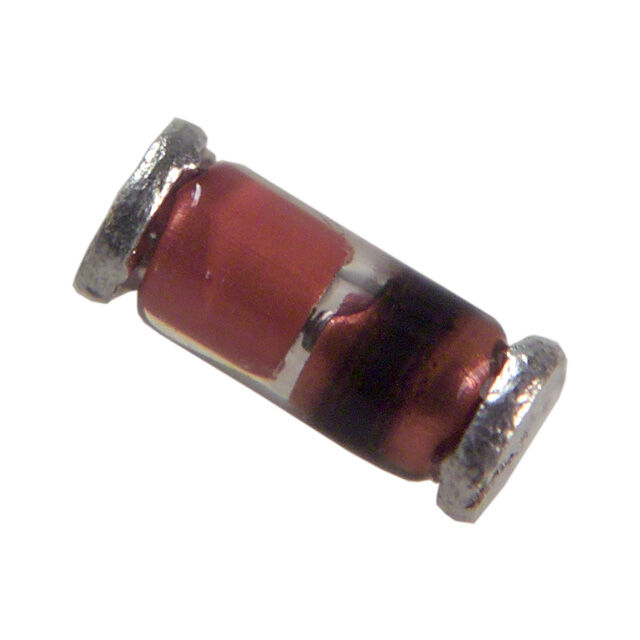

lmages are for reference only.TZM5260B-GS18
DIODE ZENER 43V 500MW SOD80
DatasheetDO-213AC, MINI-MELF, SOD-80
97,371 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Zener Diode 43 V 500 mW ±5% Surface Mount SOD-80 MiniMELF
TZM5260B-GS18
| Category | Discrete Semiconductor Products - Diodes - Zener |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Voltage - Zener (Nom) (Vz) | 43 V |
| Tolerance | ±5% |
| Power - Max | 500 mW |
| Impedance (Max) (Zzt) | 93 Ohms |
| Current - Reverse Leakage @ Vr | 100 nA @ 33 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA |
| Operating Temperature | -65°C ~ 175°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Supplier Device Package | SOD-80 MiniMELF |
| Base Product Number | TZM5260 |
| Product Attribute |  |
 |
|
 |
| Part Number | TZM5260B-GS08 | TZM5221B-GS08 | TZM5221B-GS18 | TZM5221C-GS08 |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE ZENER 43V 500MW SOD80 | DIODE ZENER 2.4V 500MW SOD80 | DIODE ZENER 2.4V 500MW SOD80 | DIODE ZENER 2.4V 500MW SOD80 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
