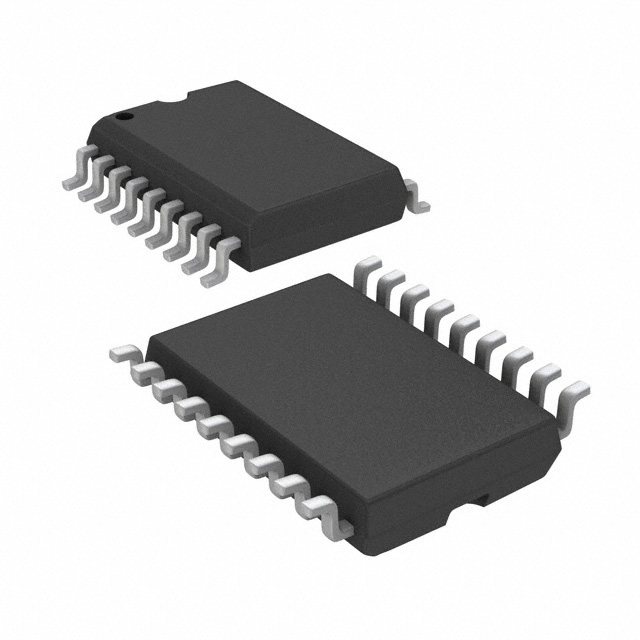

Buck, Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull Regulator Positive Output Step-Up, Step-Down, Step-Up/Step-Down DC-DC Controller IC 18-SOIC
UC3526DW
| Category | Integrated Circuits (ICs) - Power Management PMIC - DC DC Switching Controllers |
| Manufacturer | Unitrode |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Down, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Buck, Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull |
| Number of Outputs | 2 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 35V |
| Frequency - Switching | 1Hz ~ 400kHz |
| Duty Cycle (Max) | 49% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Reset, Soft Start |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 18-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 18-SOIC |
| Base Product Number | UC3526 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |
| Part Number | UC3526DW | UC3526DWTR | UC3524ADW | UC3524ADWTR |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG CTRLR MULT TOP 18SOIC | IC REG CTRLR MULT TOP 18SOIC | IC REG CTRLR MULT TOP 16SOIC | IC REG CTRLR MULT TOP 16SOIC |
| Series | - | - | - | - |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
