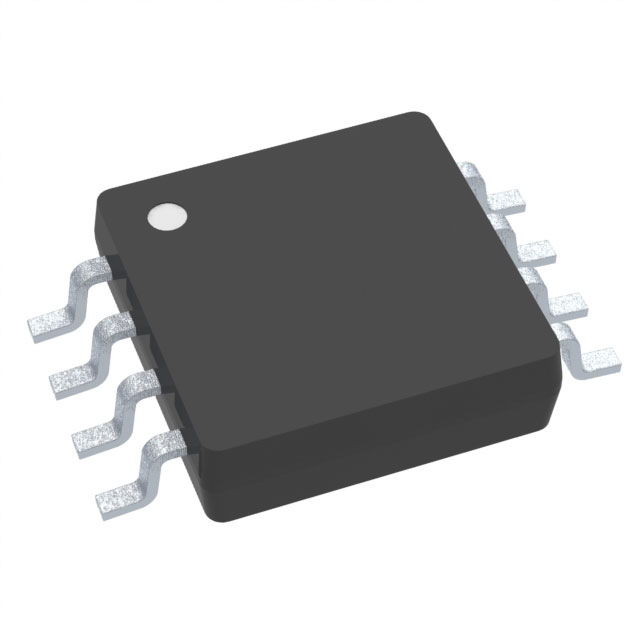

UCC2809P-2
lmages are for reference only.Payment Methods
Delivery Services
Converter Offline Boost, Flyback, Forward Topology 1MHz 8-VSSOP
UCC2809P-2
| Category | Integrated Circuits (ICs) - Power Management PMIC - AC DC Converters-Offline Switches |
| Manufacturer | Unitrode |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Boost, Flyback, Forward |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 19V |
| Duty Cycle | 70% |
| Frequency - Switching | 1MHz |
| Power (Watts) | - |
| Fault Protection | - |
| Control Features | Frequency Control, Soft Start |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-VSSOP |
| Mounting Type | Surface Mount |
| Base Product Number | UCC2809 |
| Voltage - Start Up | 15 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | UCC2809P-1 | UCC2809P-2 | UCC2809D-1 | UCC2809D-1 |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Unitrode |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IC OFFLINE SW MULT TOP 8VSSOP | IC OFFLINE SW MULT TOP 8VSSOP | IC OFFLINE SWITCH MULT TOP 8SOIC | UCC2809-1 ECONOMY PRIMARY SIDE C |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Bulk |
