UCC283TDTR-ADJ
lmages are for reference only.Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Adjustable 1 Output 3A DDPAK/TO-263-5
UCC283TDTR-ADJ
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Unitrode |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 9V |
| Voltage - Output (Min/Fixed) | 1.22V |
| Voltage - Output (Max) | 8.5V |
| Voltage Dropout (Max) | 0.6V @ 3A |
| Current - Output | 3A |
| Current - Quiescent (Iq) | 650 µA |
| PSRR | - |
| Control Features | - |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA |
| Supplier Device Package | DDPAK/TO-263-5 |
| Base Product Number | UCC283 |
| Current - Supply (Max) | - |
| Product Attribute | |
|
 |
|
| Part Number | UCC283TDTR-ADJ | UCC283TDTR-ADJ | UCC283TDTR-3 | UCC283TDTR-3 |
| Manufacturer | Texas Instruments | Texas Instruments | Unitrode | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||

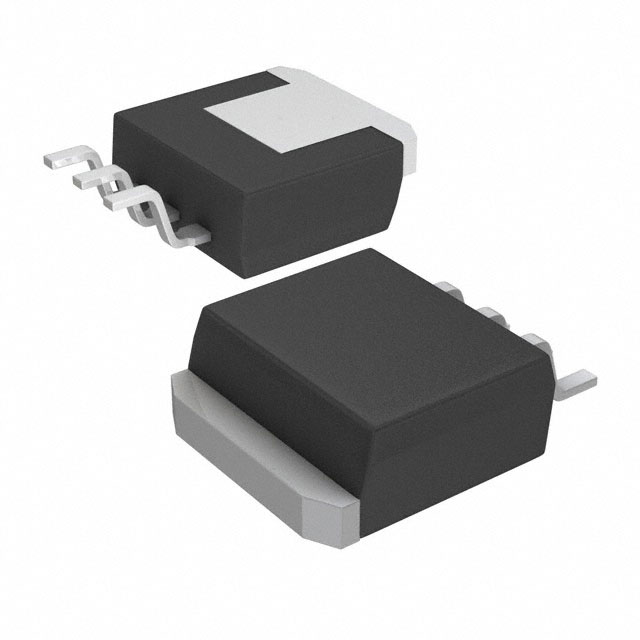

| Description | UCC283 LOW-DROPOUT, 3A, LINEAR R | IC REG LIN POS ADJ 3A DDPAK | IC REG LINEAR UCC283 LDO 3A | IC REG LIN 3.3V 3A DDPAK/TO263-3 |
| Series | Texas Instruments | Texas Instruments | Unitrode | Texas Instruments |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) |
