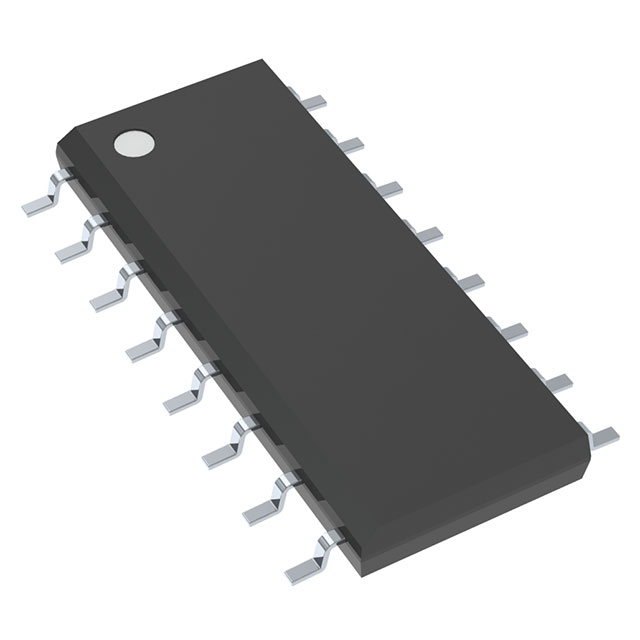

Flyback, Forward Converter Regulator Positive, Isolation Capable Output Step-Up/Step-Down DC-DC Controller IC 16-SOIC
UCC2892D
| Category | Integrated Circuits (ICs) - Power Management PMIC - DC DC Switching Controllers |
| Manufacturer | Unitrode |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Output Type | Transistor Driver |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable |
| Topology | Flyback, Forward Converter |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 8.5V ~ 16V |
| Frequency - Switching | 250kHz |
| Duty Cycle (Max) | 70% |
| Synchronous Rectifier | No |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, On Time Control, Ramp, Soft Start |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | UCC2892 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |
| Part Number | UCC2892D | UCC2892DR | UCC2892PW | UCC2892PW |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Unitrode |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |

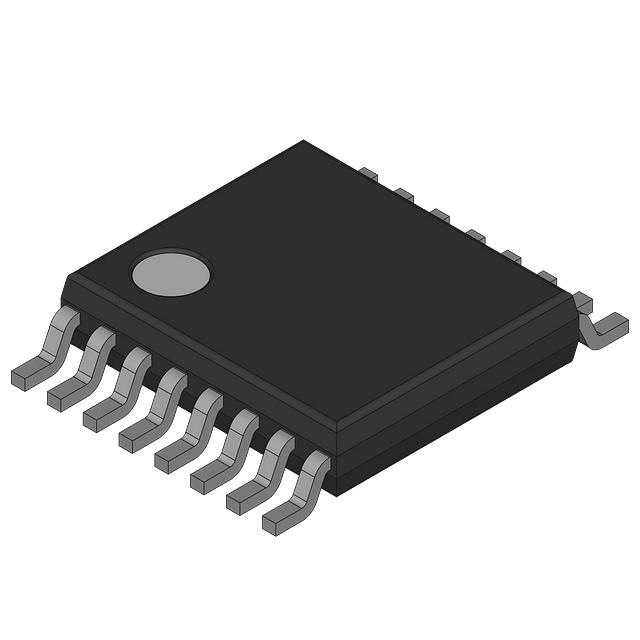

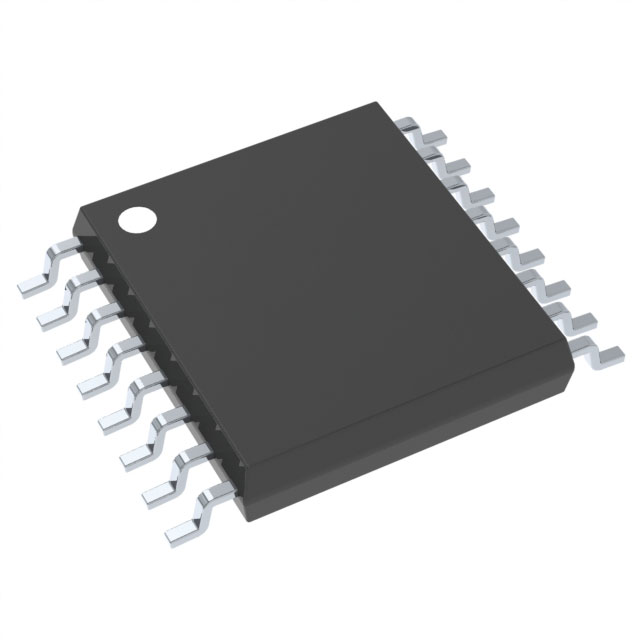

| Description | IC REG CTRLR MULT TOP 16SOIC | IC REG CTRLR MULT TOP 16SOIC | IC REG CTRLR MULT TOP 16TSSOP | UCC2892 UCC289X CURRENT MODE ACT |
| Series | - | - | - | - |
| Packaging | Tube | Tape & Reel (TR) | Tube | Bulk |
