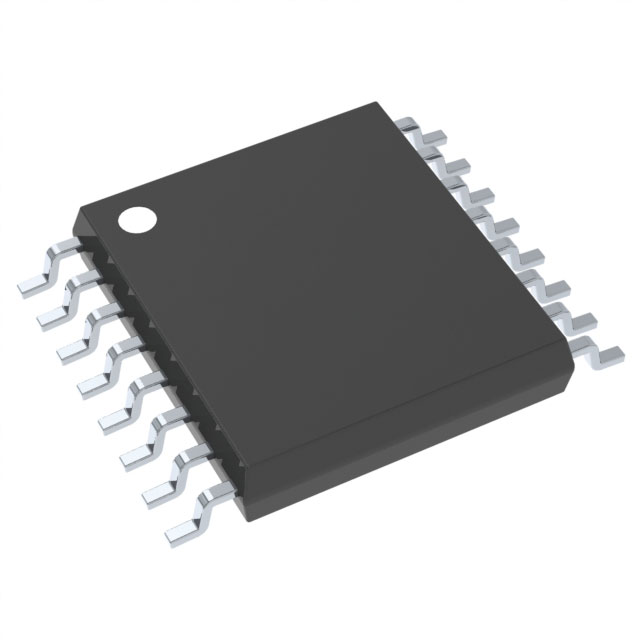

Boost, Flyback, SEPIC Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 16-TSSOP
UCC39421PW
| Category | Integrated Circuits (ICs) - Power Management PMIC - DC DC Switching Controllers |
| Manufacturer | Unitrode |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, Flyback, SEPIC |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 8V |
| Frequency - Switching | 150kHz ~ 1.2MHz |
| Duty Cycle (Max) | 88% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Low Battery, Reset |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Base Product Number | UCC39421 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

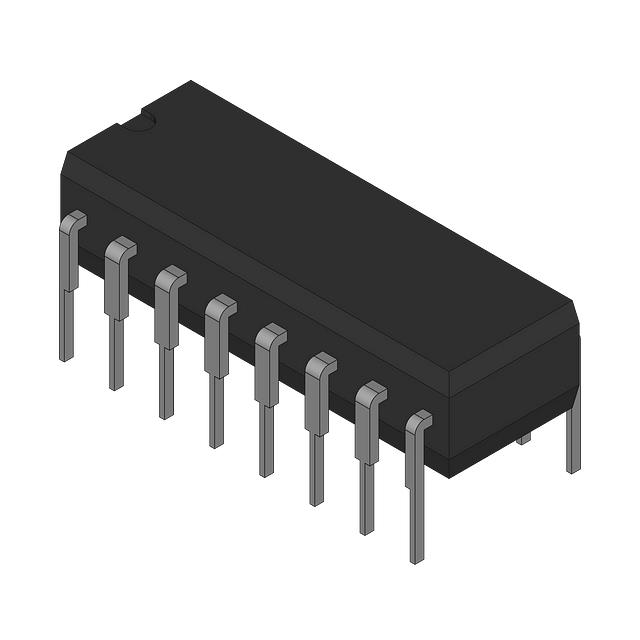

| Part Number | UCC39421PW | UCC39421PWG4 | UCC39421PWTR | UCC39421N |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Unitrode |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | IC REG CTRLR MULT TOP 16TSSOP | IC REG CTRLR MULT TOP 16TSSOP | IC REG CTRLR MULT TOP 16TSSOP | 0.00065A, 2000KHZ BICMOS, PDIP16 |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tape & Reel (TR) | Bulk |
