UCR03EVPFSR050
lmages are for reference only.UCR03EVPFSR050
RES 0.05 OHM 1% 1/4W 0603
Datasheet0603 (1608 Metric)
12,030 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
50 mOhms ±1% 0.25W, 1/4W Chip Resistor 0603 (1608 Metric) Current Sense Thick Film
UCR03EVPFSR050
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Rohm Semiconductor |
| Series | UCR |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Resistance | 50 mOhms |
| Tolerance | ±1% |
| Power (Watts) | 0.25W, 1/4W |
| Composition | Thick Film |
| Features | Current Sense |
| Temperature Coefficient | 0/ +250ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Ratings | - |
| Size / Dimension | 0.063" L x 0.034" W (1.60mm x 0.87mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | UCR03EVPFSR051 | UCR03EVPFSR056 | UCR03EVPFSR062 | UCR03EVPFSR068 |
| Manufacturer | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES 0.051 OHM 1% 1/4W 0603 | RES 0.056 OHM 1% 1/4W 0603 | RES 0.062 OHM 1% 1/4W 0603 | RES 0.068 OHM 1% 1/4W 0603 |
| Series | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |

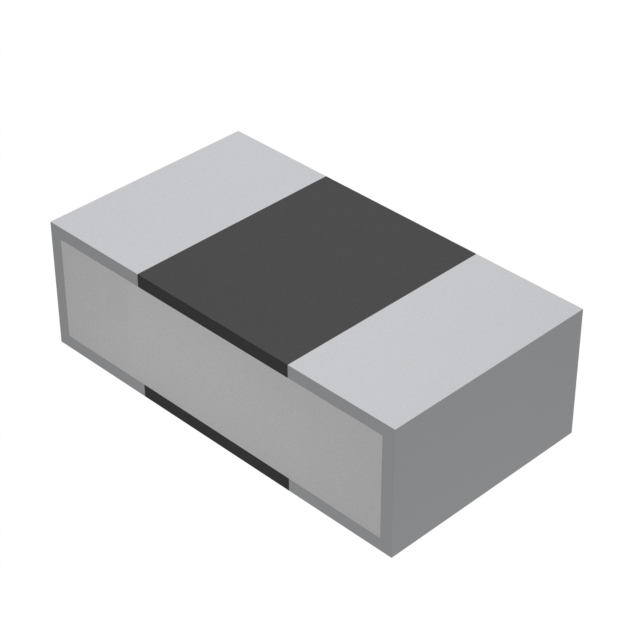

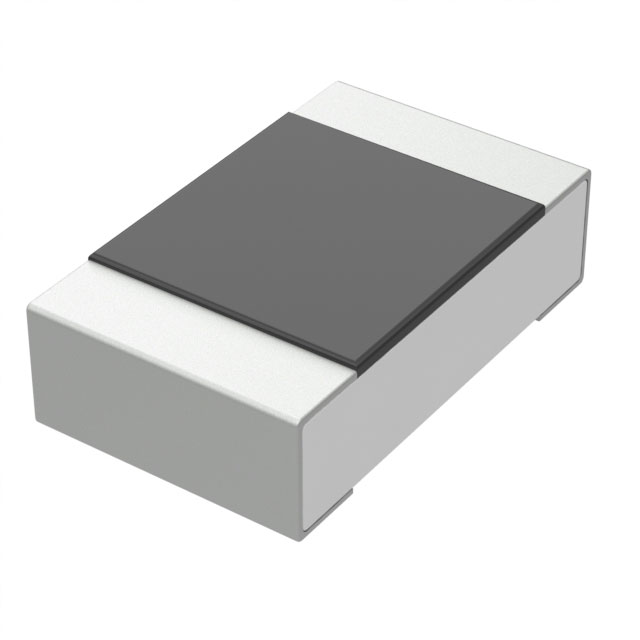

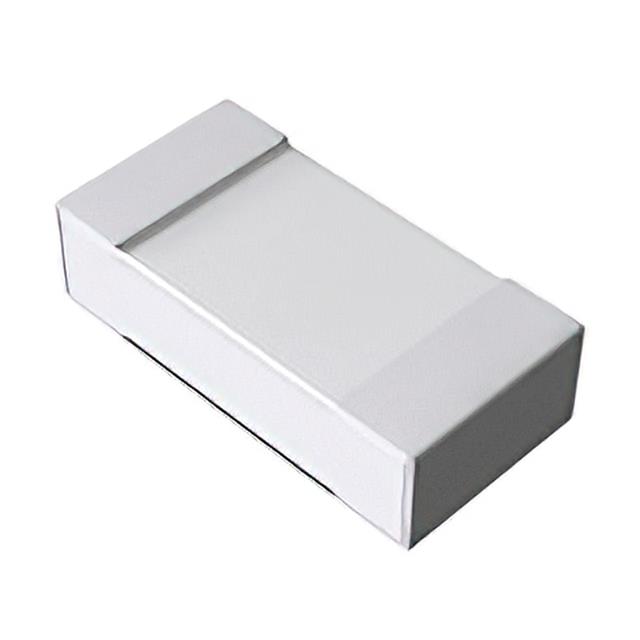

Recommended Products
