UDK2559EBTR
lmages are for reference only.UDK2559EBTR

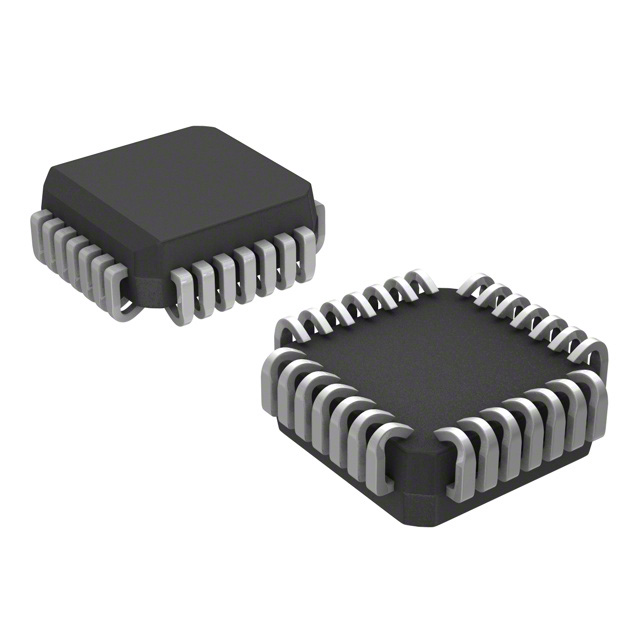

IC PWR DRIVER BIPOLAR 1:1 28PLCC
Datasheet28-LCC (J-Lead)
45,010 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Power Switch/Driver 1:1 Bipolar 700mA 28-PLCC (11.51x11.51)
UDK2559EBTR
| Category | Integrated Circuits (ICs) - Power Management PMIC - Power Distribution Switches-Load Drivers |
| Manufacturer | Allegro MicroSystems |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS non-compliant |
| Switch Type | General Purpose |
| Number of Outputs | 4 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | Low Side |
| Output Type | Bipolar |
| Interface | On/Off |
| Voltage - Load | 60V (Max) |
| Voltage - Supply (Vcc/Vdd) | 4.75V ~ 5.25V |
| Current - Output (Max) | 700mA |
| Rds On (Typ) | - |
| Input Type | Non-Inverting |
| Features | - |
| Fault Protection | Current Limiting (Fixed), Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-PLCC (11.51x11.51) |
| Package / Case | 28-LCC (J-Lead) |
| Base Product Number | UDK2559 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | UDK2559EB | UDK2559EBTR-T | UDK2559B | UDK2559B-T |
| Manufacturer | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | IC PWR DRIVER BIPOLAR 1:1 28PLCC | IC PWR DRIVER BIPOLAR 1:1 28PLCC | IC PWR DRIVER BIPOLAR 1:1 16DIP | IC PWR DRIVER BIPOLAR 1:1 16DIP |
| Series | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems | Allegro MicroSystems |
| Packaging | Tube | Tape & Reel (TR) | Tube | Tube |
