UGF8JHC0G
lmages are for reference only.UGF8JHC0G
DIODE GEN PURP 600V 8A ITO220AC
DatasheetTO-220-2 Full Pack
64,367 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 600 V 8A Through Hole ITO-220AC
UGF8JHC0G
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Current - Average Rectified (Io) | 8A |
| Voltage - Forward (Vf) (Max) @ If | 2.9 V @ 8 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 25 ns |
| Current - Reverse Leakage @ Vr | 30 µA @ 600 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-2 Full Pack |
| Supplier Device Package | ITO-220AC |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Base Product Number | UGF8 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
|
| Part Number | UGF8JH | UGF1008G | UGF10G | UGF10GH |
| Manufacturer | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

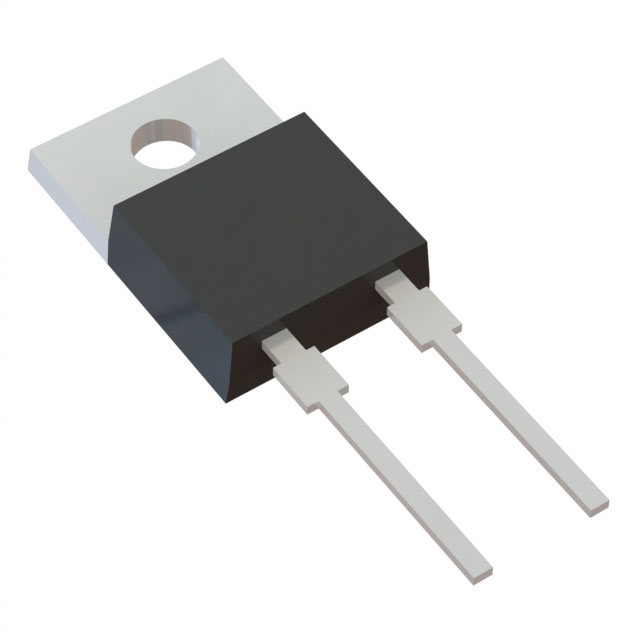

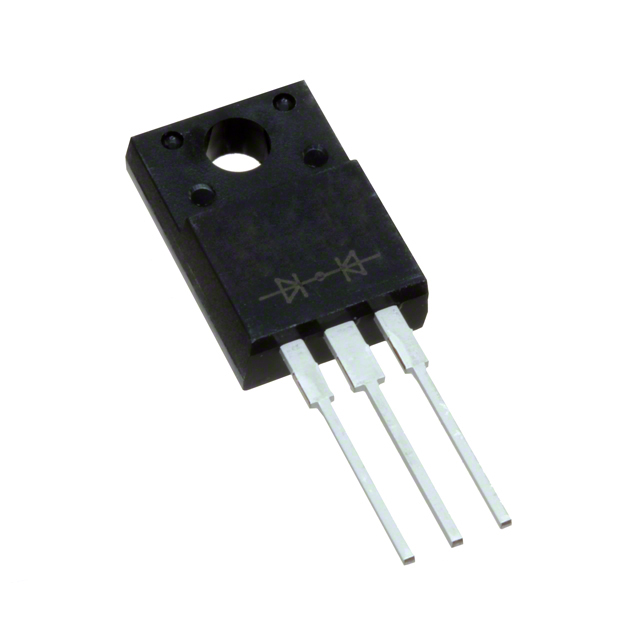

| Description | DIODE GEN PURP 600V 8A ITO220AC | DIODE GEN PURP 600V 10A ITO220AB | 25NS, 10A, 400V, ULTRA FAST RECO | 25NS, 10A, 400V, ULTRA FAST RECO |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
