Product CatalogPart Number
UGV1E470MNN6305
Manufacturer
Chinsan (Elite)Description
CAP ALUM POLY 47UF 20% 25V TH
Datasheet
DatasheetPackage
Radial, Can
In Stock
93,545 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
UGV1E470MNN6305
UGV1E470MNN6305
lmages are for reference only.Payment Methods
Delivery Services
47 µF 25 V Aluminum - Polymer Capacitors Radial, Can 30mOhm 2000 Hrs @ 105°C
Quick Inquiry
UGV1E470MNN6305
Specifications
| Category | Capacitors - Aluminum Polymer Capacitors - |
| Manufacturer | Chinsan (Elite) |
| Series | UGV |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Polymer |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 30mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 2.6 A @ 100 kHz |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | - |
| Features | - |
| Impedance | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | UGV1E101MNN6308 | UGV1E151MP26308 | UGV1E181MNN0811TU | UGV1E221MP26311U |
| Manufacturer | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM POLY 100UF 20% 25V TH | CAP ALUM POLY 150UF 20% 25V TH | CAP ALUM POLY 180UF 20% 25V TH | CAP ALUM POLY 220UF 20% 25V TH |
| Series | UGV | UGV | UGV | UGV |
| Packaging | Bulk | Cut Tape (CT)-->Tape & Box (TB) | Bulk | Cut Tape (CT)-->Tape & Box (TB) |
Customers Also Interested in
Recommended Products
UGV1E101MNN6308
Chinsan (Elite)
UGV1E151MP26308
Chinsan (Elite)
UGV1E181MNN0811TU
Chinsan (Elite)
UGV1E221MP26311U
Chinsan (Elite)

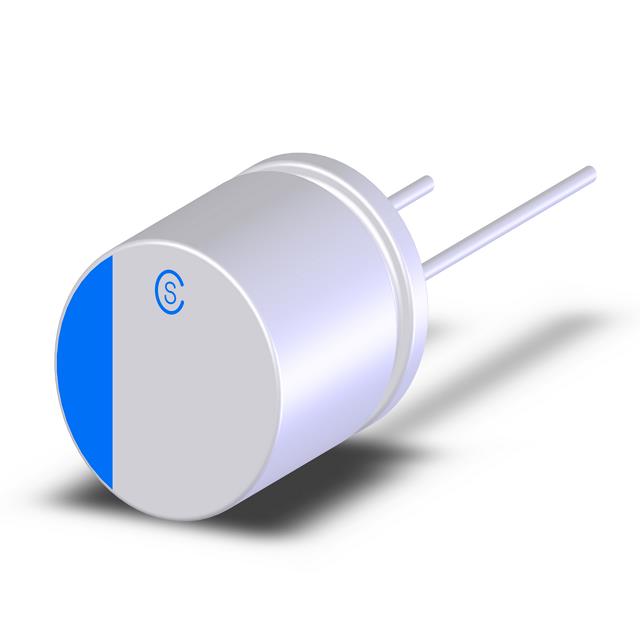

UGV1E221MP30811U
