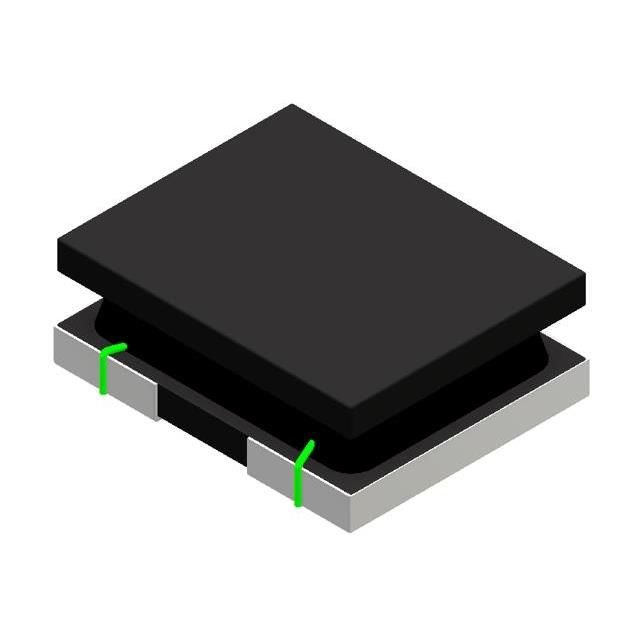

UHP 252010BF-100M
lmages are for reference only.UHP 252010BF-100M
10 UH SHIELDED DRUM CORE, WIREWO
Datasheet1008 (2520 Metric)
52,910 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 µH Unshielded Wirewound Inductor 750 mA 470mOhm 1008 (2520 Metric)
UHP 252010BF-100M
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. |
| Series | UHP252010BF |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 750 mA |
| Current - Saturation (Isat) | 750mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 470mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 1008 |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
|
|
| Part Number | UHP 252012BF-100M | AMDLA1707S-6R8MT | 1210-123K | 5500R-224K |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. | Abracon LLC | Delevan | Delevan |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | 10 UH SHIELDED DRUM CORE, WIREWO | FIXED IND 6.8UH 24A 7.2MOHM SMD | FIXED IND 12UH 272MA 2.5 OHM SMD | FIXED IND 220UH 2.48A 162MOHM SM |
| Series | TAI-TECH Advanced Electronics Co., Ltd. | Abracon LLC | Delevan | Delevan |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
