UHV-233A
lmages are for reference only.UHV-233A
CAP CER 700PF 30KV Z5T DISK
DatasheetDisk, Metal Fitting - Threaded
14,772 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
700 pF ±10% 30000V (30kV) Ceramic Capacitor Z5T Disk, Metal Fitting - Threaded
UHV-233A
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | TDK Corporation |
| Series | |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mfr | TDK Corporation |
| Series | UHV |
| Capacitance | 700 pF |
| Tolerance | ±10% |
| Voltage - Rated | 30000V (30kV) |
| Temperature Coefficient | Z5T |
| Operating Temperature | -30°C ~ 85°C |
| Features | High Voltage, Low Dissipation Factor |
| Ratings | - |
| Applications | General Purpose |
| Failure Rate | - |
| Mounting Type | Requires Holder |
| Package / Case | Disk, Metal Fitting - Threaded |
| Size / Dimension | 1.339" Dia x 1.024" L (34.00mm x 26.00mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | - |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

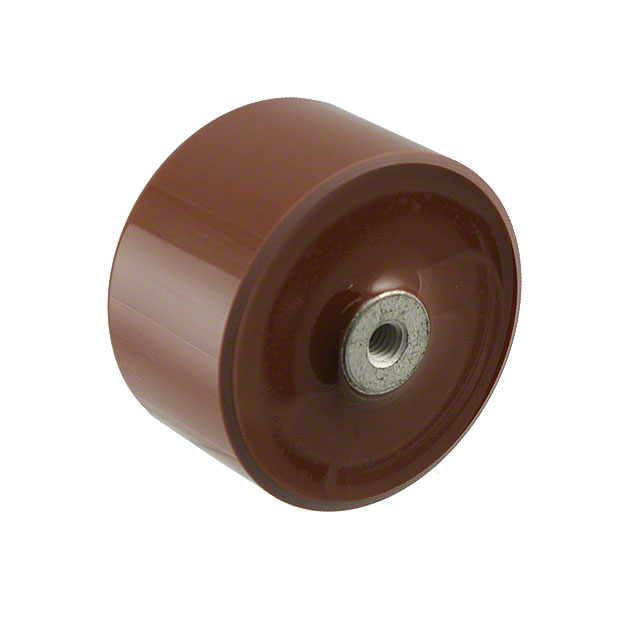

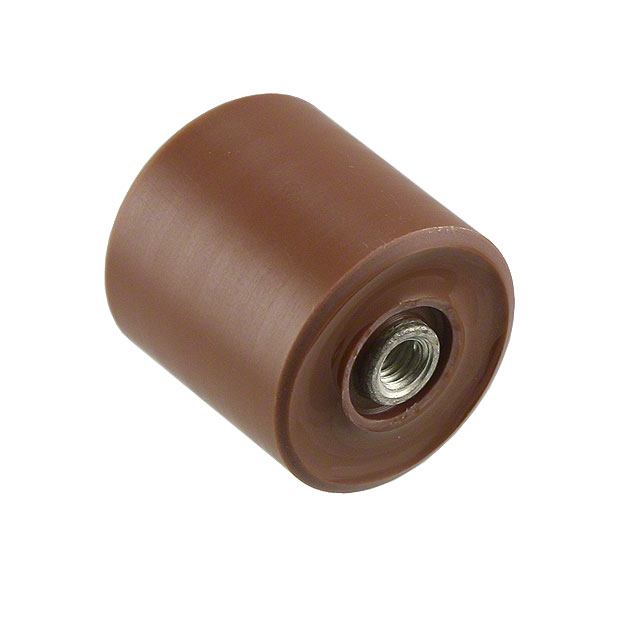

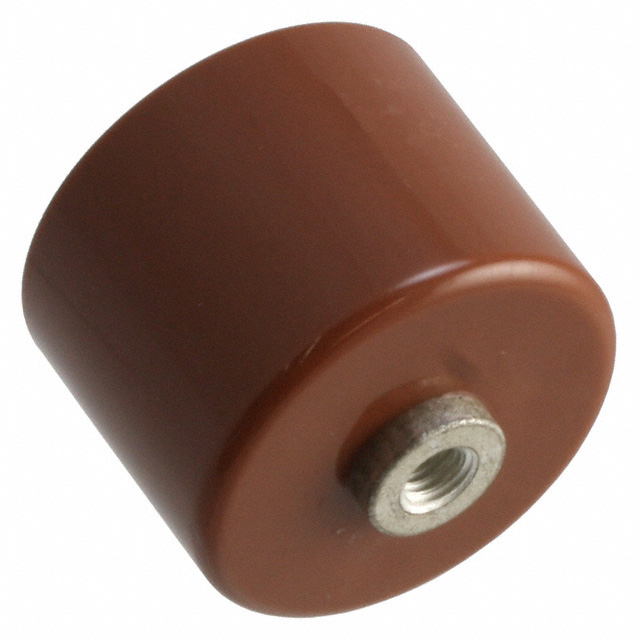

| Part Number | UHV-221A | UHV-222A | UHV-223A | UHV-224A |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

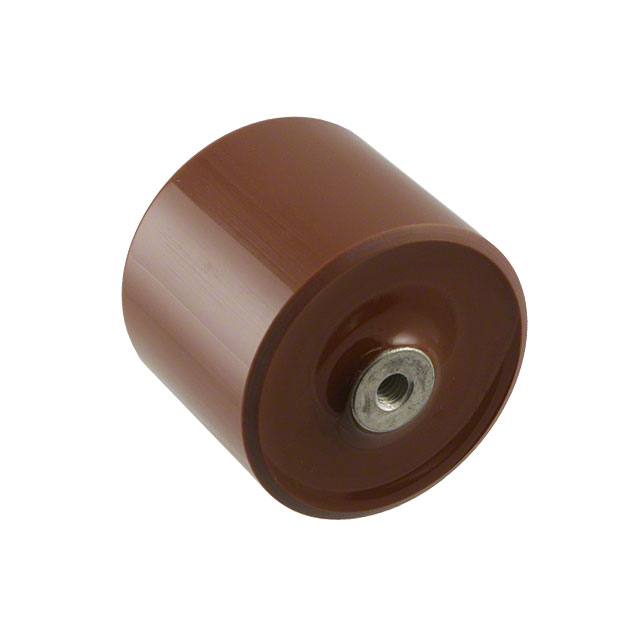

| Description | CAP CER 200PF 20KV Z5T DISK | CAP CER 400PF 20KV Z5T DISK | CAP CER 700PF 20KV Z5T DISK | CAP CER 1000PF 20KV Z5T DISK |
| Series | TDK Corporation | TDK Corporation | TDK Corporation | |
| Packaging | Bulk | Bulk | Bulk |
