UMTW-5316-15A00-SMD-TT-SN-00

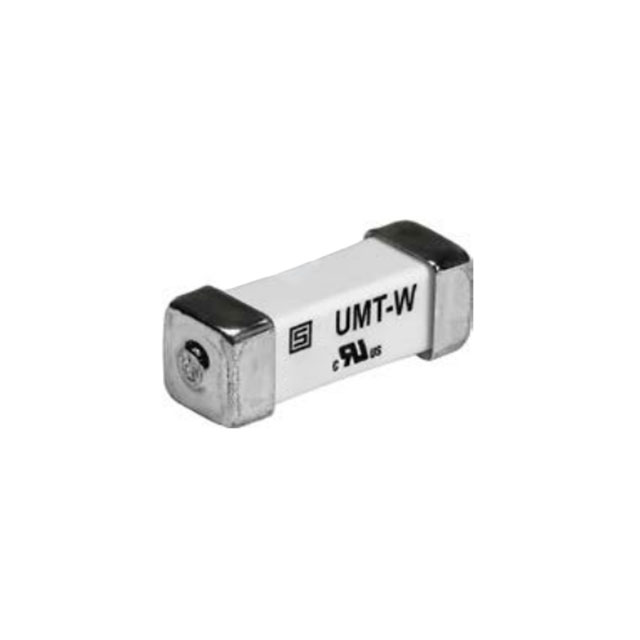

lmages are for reference only.UMTW-5316-15A00-SMD-TT-SN-00
FUSE BRD MNT 15A 125VAC/VDC 2SMD
Datasheet2-SMD, Square End Block
32,840 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
15 A 125 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
UMTW-5316-15A00-SMD-TT-SN-00
| Category | Circuit Protection - Fuses - |
| Manufacturer | SCHURTER Inc. |
| Series | UMT-W |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Surface Mount |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Current Rating (Amps) | 15 A |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 V |
| Response Time | Slow Blow |
| Package / Case | 2-SMD, Square End Block |
| Breaking Capacity @ Rated Voltage | 350A |
| Melting I²t | 1480.0 |
| Approval Agency | CE, cURus, IEC, UL2481-14 |
| Operating Temperature | -55°C ~ 125°C |
| Color | - |
| Size / Dimension | 0.606" L x 0.211" W x 0.211" H (15.40mm x 5.35mm x 5.35mm) |
| Base Product Number | UMTW-5316 |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | UMTW-5316-10A00-SMD-TT-SN-00 | UMTW-5316-20A00-SMD-TT-SN-00 | UMTW-5316-5A000-SMD-TT-SN-00 | UMTW-5316-7A500-SMD-TT-SN-00 |
| Manufacturer | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FUSE BRD MNT 10A 125VAC/VDC 2SMD | FUSE BRD MNT 20A 125VAC/VDC 2SMD | FUSE BRD MNT 5A 125VAC/VDC 2SMD | FUSE BRD MNT 7A 125VAC/VDC 2SMD |
| Series | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
