UP1B-470-R
lmages are for reference only.UP1B-470-R
FIXED IND 47UH 720MA 474MOHM SMD
DatasheetNonstandard
74,688 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
47 µH Unshielded Drum Core, Wirewound Inductor 720 mA 474mOhm Max Nonstandard
UP1B-470-R
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Eaton - Electronics Division |
| Series | UNI-PAC™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 47 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 720 mA |
| Current - Saturation (Isat) | 870mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 474mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.350" L x 0.240" W (8.89mm x 6.10mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

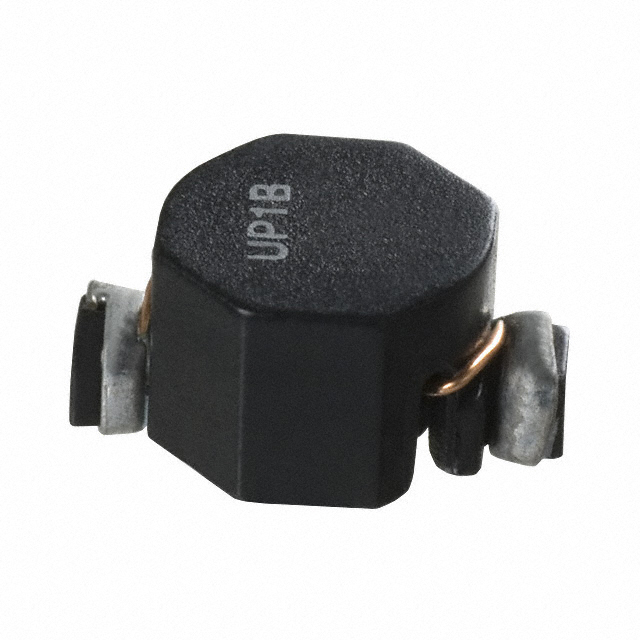

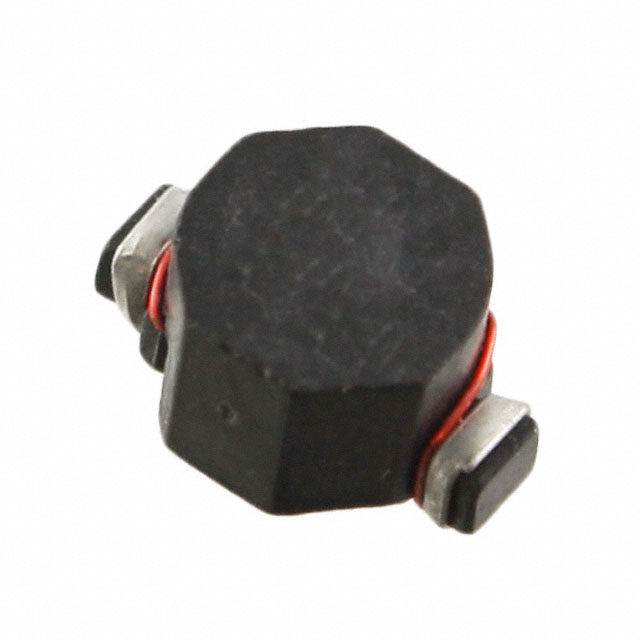

| Part Number | UP1B-100-R | UP1B-101-R | UP1B-150 | UP1B-150-R |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | FIXED IND 10UH 1.5A 110.7MOHM SM | FIXED IND 100UH 470MA 1.11OHM SM | FIXED IND 15UH 1.2A 174.7MOHM SM | FIXED IND 15UH 1.2A 174.7MOHM SM |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
