Product CatalogPart Number
UPC7H501MP25509
Manufacturer
Chinsan (Elite)Description
CAP ALUM POLY 500UF 20% 7.5V TH
Datasheet
DatasheetPackage
Radial, Can
In Stock
53,146 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
UPC7H501MP25509
UPC7H501MP25509

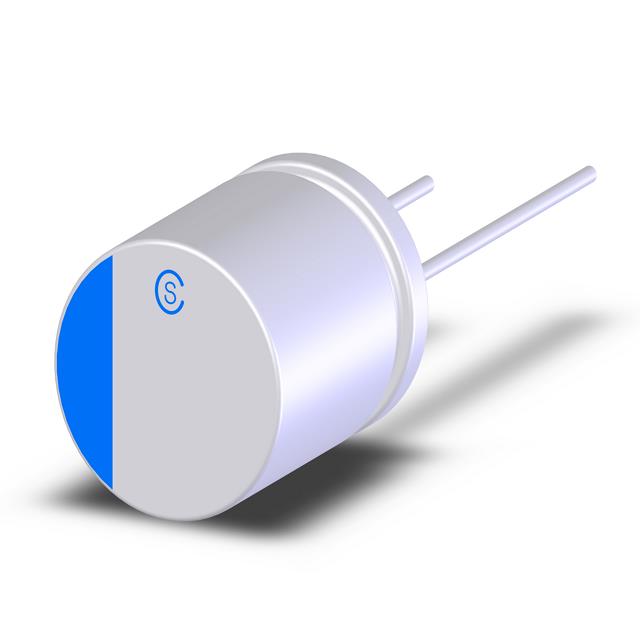

lmages are for reference only.Payment Methods
Delivery Services
500 µF 7.5 V Aluminum - Polymer Capacitors Radial, Can 10mOhm 2000 Hrs @ 105°C
Quick Inquiry
UPC7H501MP25509
Specifications
| Category | Capacitors - Aluminum Polymer Capacitors - |
| Manufacturer | Chinsan (Elite) |
| Series | UPC |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) |
| RoHS Status | ROHS3 Compliant |
| Type | Polymer |
| Capacitance | 500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 7.5 V |
| ESR (Equivalent Series Resistance) | 10mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3.1 A @ 100 kHz |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.216" Dia (5.50mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | - |
| Features | - |
| Impedance | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | UPC7H471MP26308F5 | UPC7H501MCG5509 | PCL1A680MCL1GS | HHXE160ARA471MJA0G |
| Manufacturer | Chinsan (Elite) | Chinsan (Elite) | Nichicon | Chemi-Con |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM POLY 470UF 20% 7.5V TH | CAP ALUM POLY 500UF 20% 7.5V TH | CAP ALUM POLY 68UF 20% 10V SMD | CAP ALUMHYB 470UF 20% 16V SMD |
| Series | UPC | UPC | PCL | HXE |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) | Bulk | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
