UPD70F3822GB-GAH-AX
lmages are for reference only.UPD70F3822GB-GAH-AX
IC MCU 32BIT 64KB FLASH 64LQFP
Datasheet64-LQFP
83,244 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
V850ES V850ES/Jx3-H Microcontroller IC 32-Bit Single-Core 48MHz 64KB (64K x 8) FLASH
UPD70F3822GB-GAH-AX
| Category | Integrated Circuits (ICs) - Embedded - Microcontrollers |
| Manufacturer | Renesas Electronics Corporation |
| Series | V850ES/Jx3-H |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Core Processor | V850ES |
| Core Size | 32-Bit Single-Core |
| Speed | 48MHz |
| Connectivity | CANbus, CSI, EBI/EMI, I2C, UART/USART, USB |
| Peripherals | DMA, LVD, PWM, WDT |
| Number of I/O | 45 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 24K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.85V ~ 3.6V |
| Data Converters | A/D 10x10b; D/A 1x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | - |
| Package / Case | 64-LQFP |
| Base Product Number | UPD70F3822 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
-GAH-AX.jpg "UPD70F3824GB(S)-GAH-AX") |
 |

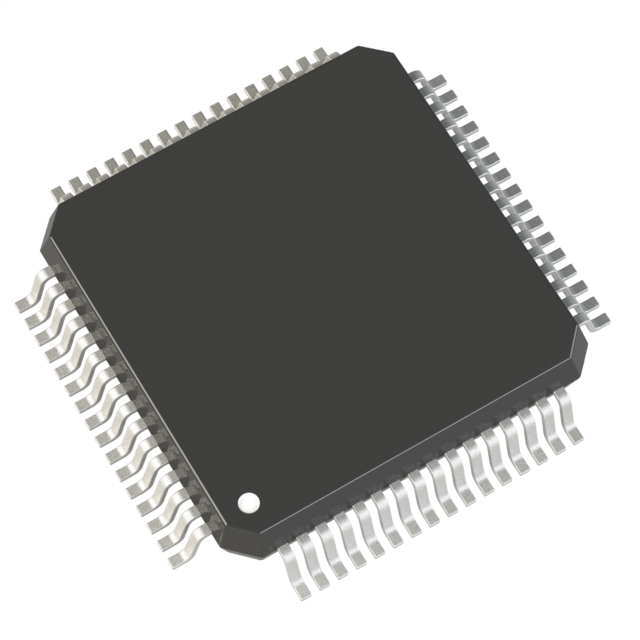

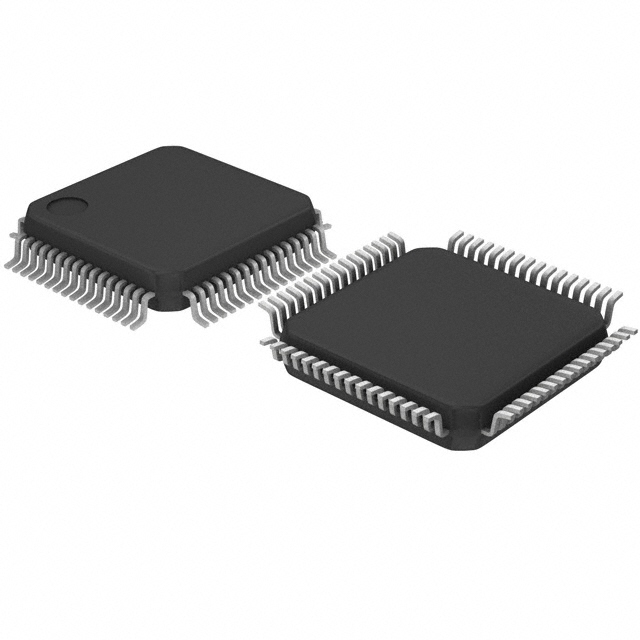

| Part Number | UPD70F3820GB-GAH-AX | UPD70F3823GB-GAH-AX | UPD70F3824GB(S)-GAH-AX | UPD70F3824GB-GAH-AX |
| Manufacturer | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC MCU 32BIT 16KB FLASH 48QFN | IC MCU 32BIT 128KB FLASH 64LQFP | IC MCU 32BIT 256KB FLASH 64LQFP | IC MCU 32BIT 256KB FLASH 64LQFP |
| Series | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation |
| Packaging | Tray | Tray | Tray | Tray |
